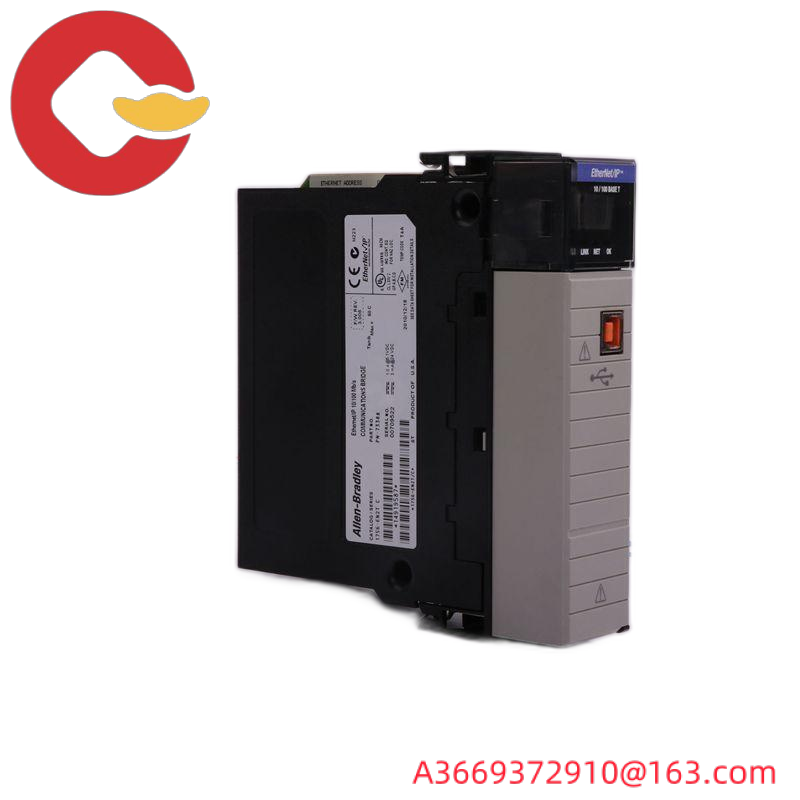

Allen-Bradley 1756-EN2T/C ControlLogix EtherNet/IP Bridge Module, Industrial Automation Solution

Manufacturer:Allen-Bradley

Model Number:1756-EN2T/C

Module Type:ControlLogix EtherNet/IP Bridge

Communication Protocol:Ethernet/IP

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 Mbps

Enclosure Type:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V continuous

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not applicable

    The Allen-Bradley 1756-EN2T/C ControlLogix EtherNet/IP Bridge Module is designed for robust performance in demanding industrial environments. Its open-type enclosure ensures durability against harsh conditions, while its Ethernet/IP compatibility supports seamless integration with a wide array of networked devices.

    With support for up to 64 TCP/IP connections and 128 Logix connections (I/O and information), this module is ideal for applications requiring extensive network connectivity. It offers advanced features such as socket services and SNMP support, enhancing system management and monitoring capabilities.

    The 1756-EN2T/C is equipped with 32 multicast tags and 64 + 64 CIP unconnected messages (backplane + Ethernet), providing efficient communication across different components of the automation system. This feature-rich module ensures high-speed data transfer rates, crucial for real-time control applications.

    Featuring a compact design and lightweight construction, the Allen-Bradley 1756-EN2T/C is easy to integrate into existing systems without compromising on performance. Its compatibility with Modicon M238 logic controllers makes it a versatile choice for a wide range of industrial automation projects.

    For optimal operation, ensure proper installation and maintenance procedures are followed. The Allen-Bradley 1756-EN2T/C is designed for longevity and reliability, backed by comprehensive support from the manufacturer, ensuring minimal downtime and maximum efficiency in your automation infrastructure.
