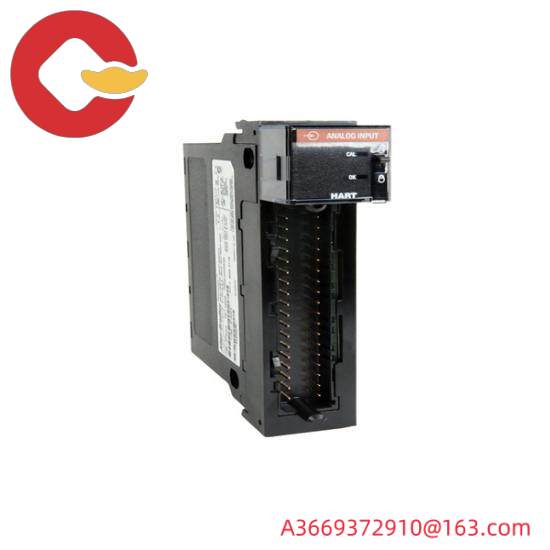

Allen-Bradley 1756-IF16H ControlLogix Analog Input Module: Precision Data Acquisition for Industrial Automation

Operating Voltage:DC 24V

Channels:16

Input Range:-10V to +10V

Accuracy:+/- 1% of full scale

Communication Interface:ControlLogix Ethernet/IP

Power Consumption:Less than 1W

Dimensions:2.7 x 5.2 x 1.7 inches

Weight:Approximately 0.3 lbs

    The Allen-Bradley 1756-IF16H ControlLogix Analog Input Module is engineered to provide reliable and accurate data acquisition for a wide range of industrial control systems. Its HART interface allows seamless integration with a variety of process instruments, enhancing operational efficiency.

    With its versatile input ranges, this module caters to diverse applications, from low to high voltage signals, ensuring compatibility with most industrial standards. The module’s advanced filtering capabilities and real-time sampling contribute to precise data handling, crucial for accurate system responses.

    Equipped with fault detection features such as under-range and over-range protection, the 1756-IF16H ensures system safety and reliability. The inclusion of process alarms and wire-off detection further enhances the module’s robustness, minimizing downtime and potential errors.

    The 1756-IF16H is designed with an open-type enclosure, ensuring it meets demanding environmental conditions. Its compact size and efficient power dissipation make it suitable for both new installations and retrofit scenarios in industrial settings.

    For users seeking high-capacity and precision in their automation systems, the Allen-Bradley 1756-IF16H ControlLogix Analog Input Module offers an exceptional solution, backed by the reliability and support of a leading industrial automation brand.
