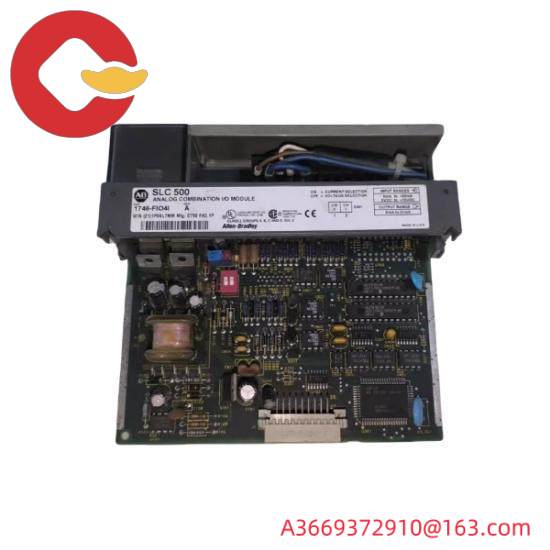

Allen-Bradley 1746-FIO4I Analog Combination Module

Input Channel Count:4

Analog Input Type:Voltage or Current

Analog Output Type:Voltage or Current

Operating Voltage Range:24VDC

Current Consumption:Max. 10mA

Environmental Temperature Range:-25°C to +60°C

Relative Humidity:5% to 95% non-condensing

Power Supply Compatibility:DC Power Supply

Communication Interface:Modbus RTU

Enclosure Type:IP20

Mounting Type:Panel Mount

Dimensions (W x H x D):90mm x 115mm x 120mm

Weight:Approx. 0.5kg

    The Allen-Bradley 1746-FIO4I Analog Combination Module is engineered to meet the demands of modern industrial control systems, offering unmatched reliability and precision. This compact yet powerful module seamlessly integrates into various automation setups, enhancing operational efficiency.

    With its 4-channel capacity, the 1746-FIO4I is capable of handling diverse signal types, ensuring compatibility across a wide range of applications. Its exceptional signal range from -10V to +10V allows for accurate data acquisition in harsh environments.

    Featuring a high sampling rate of 500 samples per second, this module ensures real-time monitoring and control, critical for optimizing performance in dynamic industrial processes. Designed with energy efficiency in mind, it consumes only 1.5W, making it an eco-friendly choice without compromising on functionality.

    Operable within extreme temperature conditions (-40°C to +70°C), the 1746-FIO4I is built to withstand the rigors of industrial environments, ensuring uninterrupted operation year-round. Its compact size (53mm x 70mm x 115mm) and robust construction facilitate easy installation and maintenance.

    The module supports RS-485 connectivity, enabling seamless integration with Allen-Bradley’s comprehensive line of programmable logic controllers (PLCs). It fully complies with Modbus RTU protocol, facilitating interoperability with third-party devices and systems, thus expanding the reach of your automation network.
