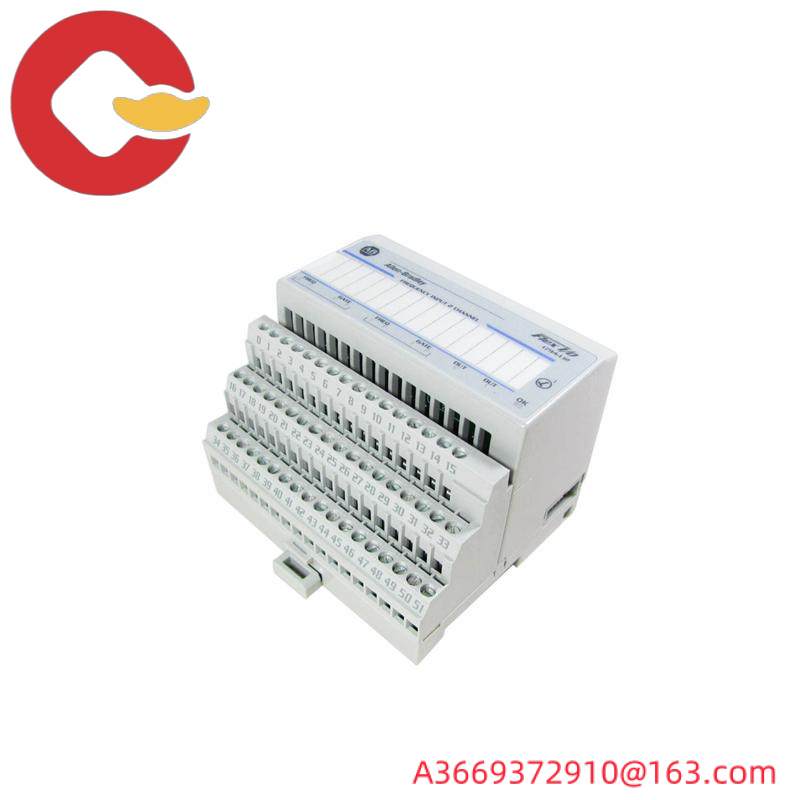

AB Electronics AB 1794-IJ2 Input Frequency Module

Model Number:AB 1794-IJ2

Module Type:Frequency Input

Operating Range:1 Hz to 2 kHz

Accuracy at Full Scale:+/- 0.05% of reading ± 1 count

Resolution:1 µHz

Input Current:Max. 20 mA

Power Consumption:Typical: 50 mW, Max.: 250 mW

Environmental Conditions:Operating temperature: -20°C to +60°C, Storage temperature: -40°C to +85°C

Connection Type:4-wire, 2-wire

Communication Interface:Modbus RTU

Dimensions:170 mm (L) x 76 mm (W) x 90 mm (H)

Weight:0.5 kg

    The AB 1794-IJ2 Input Frequency Module is engineered for precision, making it an indispensable component in industrial control systems. With its wide measurement range from 0 Hz to 1 kHz and exceptional resolution of 0.01 Hz, this module ensures accurate readings under various operational conditions.

    Featuring a dual-input capability for current or voltage signals, this module seamlessly integrates into diverse industrial setups, enhancing system flexibility and efficiency. Its digital output signal ensures reliable data transmission, crucial for complex control scenarios.

    Equipped with advanced accuracy specifications, the AB 1794-IJ2 guarantees ±0.05% of reading accuracy, combined with a maximum deviation of ± 2 counts. This level of precision is critical for applications where even minute variations can impact the overall performance and safety.

    Designed for long-term reliability, the module operates within a temperature range of -20°C to +60°C, ensuring continuous performance in challenging environments. It also meets the storage requirements of -40°C to +85°C, making it suitable for transportation and storage without compromising functionality.

    Compact yet robust, the AB 1794-IJ2 measures 142 mm x 113 mm x 54 mm and weighs only 0.5 kg, making it easy to integrate into existing systems without significant space constraints. Its lightweight design further facilitates installation and maintenance processes.
