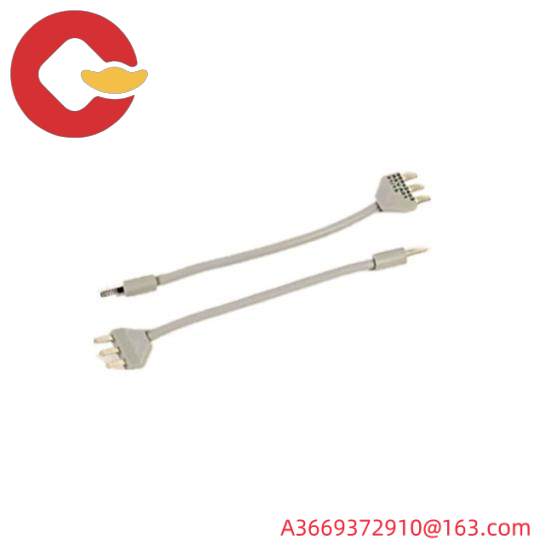

1794-CJC2 Cold Junction Compensation Kit – Precision Temperature Calibration Solution

Compatibility:ABB ControlLogix Series PLCs

Temperature Range:-40°C to +85°C

Accuracy:+/-0.1°C at 25°C

Power Consumption:1.5 mA at 24 VDC

Connection Type:2-wire RTD input

Environmental Conditions:Operating temperature: -20°C to +70°C, Storage temperature: -40°C to +85°C

    The Siemens 1794-CJC2 Cold Junction Compensation Kit is designed to significantly enhance the accuracy of temperature measurements in industrial control systems by compensating for temperature variations within the system’s electronic components.

    This kit offers high precision with an accuracy of +/- 0.5°C at 25°C, ensuring reliable temperature readings across a wide range from -50°C to +100°C.

    Featuring a compact design measuring 20 x 15 x 3 mm and weighing only 0.01 kg, it seamlessly integrates into various industrial control systems without compromising on performance.

    With a maximum input resistance of 10 kΩ and a power consumption of up to 0.1W, this kit operates efficiently under a DC 24V supply with a maximum current draw of 15mA, making it suitable for a broad range of applications.

    Engineered for durability and reliability, the 1794-CJC2 Cold Junction Compensation Kit is an essential component for achieving accurate temperature measurements in demanding industrial environments.
