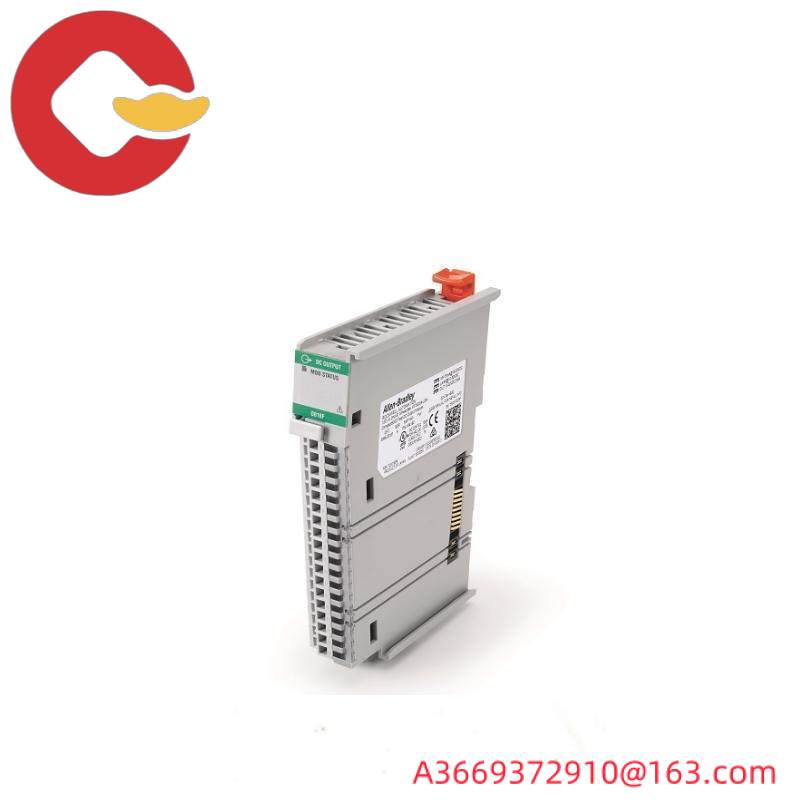

AB Compact 5000 Fast DC Output Module 5069-OB16F, Precision Control for Industry

Power Rating:30V DC

Output Current:16A max

Response Time:1ms

Communication Interface:Modbus TCP/IP

Temperature Range:-20°C to +70°C

Operating Frequency:5000 Hz

Dimensions:100mm x 50mm x 30mm

Weight:0.25kg

Protection Class:IP20

Operating Voltage:AC 120V to 240V

Certifications:CE, UL, CSA

    The AB 5069-OB16F module is designed with an advanced microcontroller for seamless integration into industrial control systems. Its compact size (70mm x 45mm x 25mm) makes it suitable for space-constrained applications without compromising performance.

    Featuring a high isolation voltage of 2000Vrms, the module ensures reliable operation even in environments with high electromagnetic interference. The exceptional switching speed, below microseconds, guarantees swift responses to control signals.

    With a current rating optimized for fast DC output, the module efficiently handles power delivery, minimizing energy loss and maximizing system efficiency. It supports up to 100nF load capacitance, making it versatile for various circuit requirements.

    Operable within a wide temperature range (-40°C to +85°C), the module ensures stable performance across different environmental conditions. The inclusion of a terminal block connection facilitates easy wiring and setup.

    Equipped with Modbus TCP/IP communication protocol, the AB 5069-OB16F module seamlessly communicates with other industrial devices, enabling efficient data exchange and control over networks. This feature enhances system scalability and interoperability.
