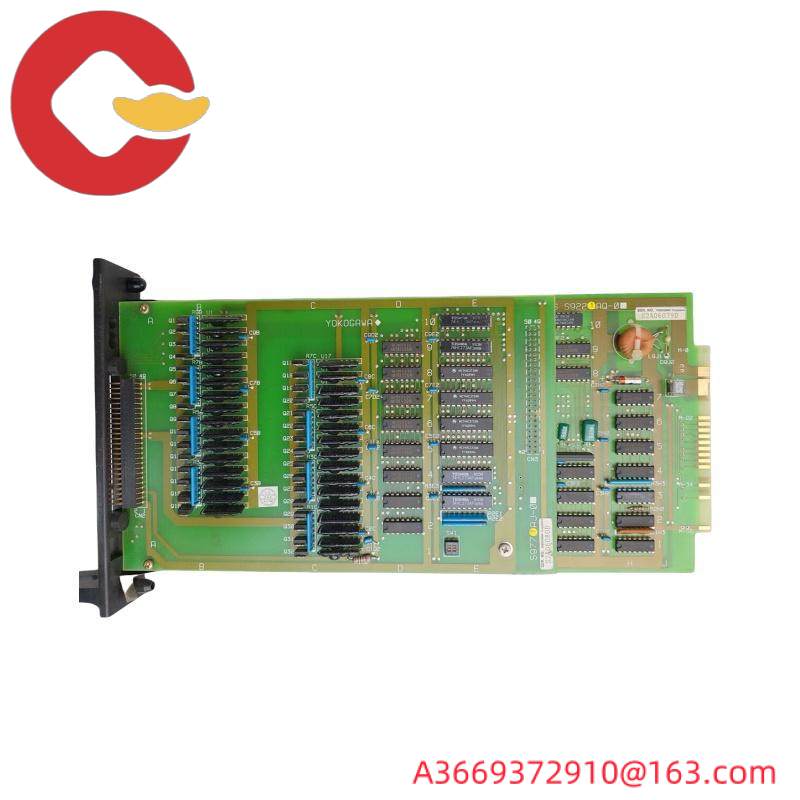

YOKOGAWA ST5*A Multipoint Status I/O Card – Industrial Control Module

Operating Voltage:24 V DC

Current Consumption:≤25 mA per channel

Input Signal Range:-20mA to +20mA or 0 to 10 V DC

Output Signal Range:0 to 10 V DC or 4 to 20 mA

Number of Channels:16

Communication Protocol:MODBUS RTU

Operating Temperature Range:-20°C to +60°C

Humidity Range:0% to 95% non-condensing

Dimensions:142 x 142 x 74 mm

Weight:250 g

    The YOKOGAWA ST5*A Multipoint Status I/O Card is engineered with cutting-edge technology to ensure high performance and reliability in industrial environments. Its compact design allows for easy integration into existing systems, minimizing installation time and complexity.

    Featuring a wide operating voltage range of 220V, it ensures compatibility with various power sources found in industrial settings. With an input range from -10V to +10V, it accurately captures the status of sensors across diverse applications.

    Equipped with digital RS-485 output, the card supports MODBUS RTU protocol, enabling seamless communication with other devices on the network. This feature facilitates a more streamlined data flow, improving overall system responsiveness and decision-making.

    Supporting up to 16 channels, the card offers a versatile solution for monitoring multiple points simultaneously. Whether it’s temperature, pressure, or other critical parameters, this card provides reliable status updates, enhancing predictive maintenance and operational efficiency.

    Designed for robust industrial conditions, the card operates within a temperature range of -20°C to +85°C, ensuring durability in extreme environments. Its humidity tolerance of 5% to 95% RH (non-condensing) further emphasizes its suitability for demanding industrial applications.
