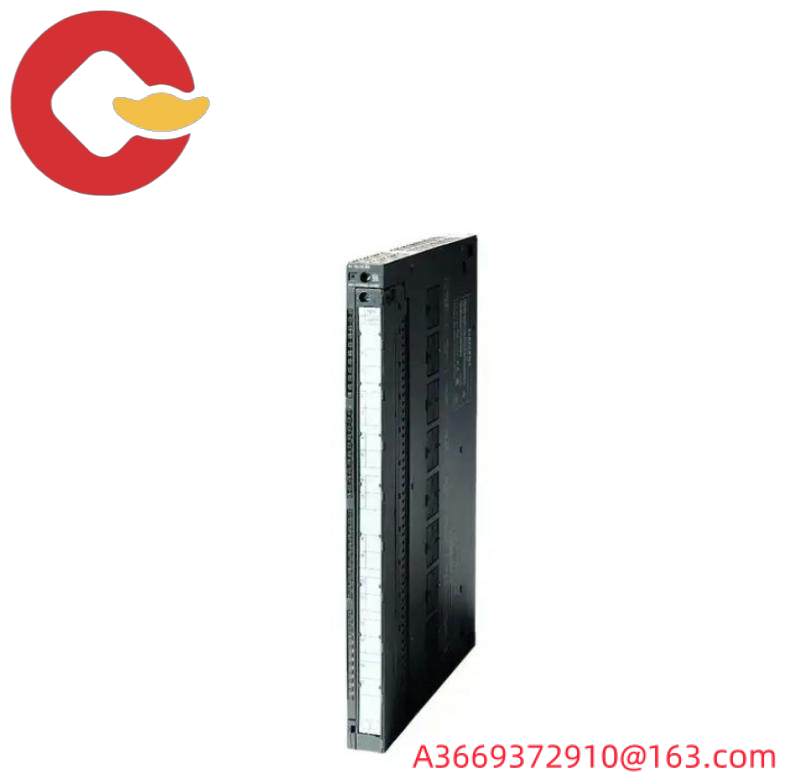

Siemens 6ES7422-1BL00-0AB0 Digital Output SM 422

Model Type:SIMATIC S7-400

Manufacturer:SIEMENS

Model Number:6ES7422-1BL00-0AB0

Net Weight (kg):0.842

Packaging Dimensions (WxHxD):23.30 x 30.20 x 3.80 cm

Isolation:Optically Isolated

Output Configuration:32 Digital Outputs

Supply Voltage Range:24V DC

Current Rating:0.5 A

Output Delay Time:0.15 ms

Diagnostic Capabilities:Onboard diagnostics

    The SIEMENS 6ES7422-1BL00-0AB0 Digital Output Module is engineered for seamless integration into industrial automation systems, providing a robust solution for control applications. This module boasts an impressive feature set designed to meet the demands of modern manufacturing environments.

    Featuring optical isolation, this module ensures minimal interference between circuits, enhancing system stability and reducing the risk of signal degradation. With its 16 digital output channels, it offers versatile control capabilities, suitable for driving a wide range of loads including relays, solenoids, and LED indicators.

    The module supports operation at a nominal voltage of 24V DC, making it compatible with various power supplies commonly found in industrial settings. Its current rating of 0.5 A per channel ensures efficient power delivery without overloading, ensuring reliable operation even under heavy load conditions.

    An important aspect of this module is its ability to handle different types of loads, particularly inductive loads, which are common in many industrial applications. The 0.15 ms output delay time provides sufficient time for the load to switch, preventing unintended short circuits and protecting against electrical arcing.

    In terms of physical characteristics, the module is compact yet durable, featuring a weight of 0.842 kg and dimensions of 23,30 x 30,20 x 3,80 cm. It is designed to operate within a temperature range from -25°C to +60°C, ensuring reliable performance across various environmental conditions encountered in industrial settings.

    With its advanced design, high reliability, and broad compatibility, the SIEMENS 6ES7422-1BL00-0AB0 Digital Output Module is an indispensable component for achieving precise control and enhancing operational efficiency in industrial automation systems.
