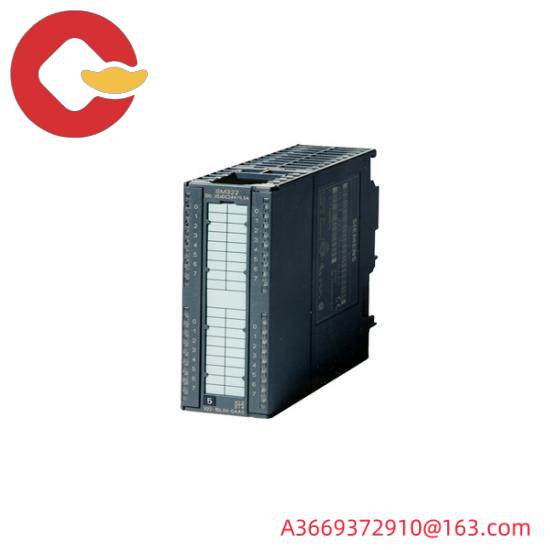

Siemens 6ES7322-1BH01-0AA0 Digital Output Module – High Precision Control Solution

Type:Digital Output

Model Number:6ES7322-1BH01-0AA0

Series:SIMATIC S7-300

Channels:8 Channels

Output Voltage:DC 24V

Load Current:0.5A

Switching Speed:Fast

Isolation:Optically Isolated

Operating Temperature:-25°C to +60°C

Enclosure Type:IP20

Dimensions:88mm x 22mm x 111mm

Weight:0.07 kg

Connection Type:24-pin Connector

Supply Voltage Range:230V AC

Load Compatibility:Inductive Loads

Diagnostic Features:Fault Detection

    The Siemens 6ES7322-1BH01-0AA0 Digital Output Module is a high-performance component designed for integration into advanced industrial automation systems. Its robust design ensures reliable operation under demanding conditions, offering unparalleled precision and accuracy in controlling electrical processes.

    Featuring optically isolated relay outputs, this module guarantees minimal interference and enhanced safety, making it suitable for environments where high levels of electrical isolation are required. Each of the 32 channels is equipped to handle 24V DC at 0.5A, providing ample capacity for various industrial applications.

    With an operating frequency of up to 600 Hz, the module is capable of responding swiftly to control signals, ensuring smooth and efficient system operation. The source output configuration (PNP) allows for direct connection to load circuits without the need for additional components, simplifying installation and reducing costs.

    Designed for compatibility with the SIMATIC S7-300 series, the module seamlessly integrates with existing Siemens automation infrastructure, enhancing productivity and minimizing downtime. Its compact size and lightweight construction make it easy to install in space-constrained areas, while its IP20 environmental rating ensures protection against dust and light splashes.

    Operating within a temperature range of -25°C to +60°C, the module is built to withstand extreme environmental conditions, ensuring continuous performance throughout the year. Additionally, the inclusion of front connector options (screw terminals or push-in) provides flexibility in connecting to various wiring configurations, accommodating diverse installation requirements.
