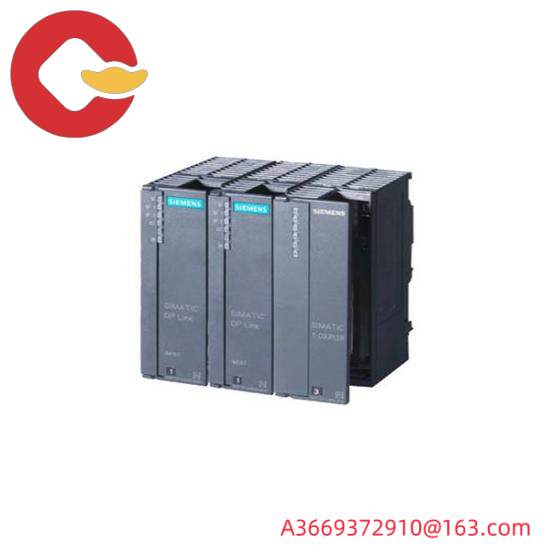

Siemens 6ES7197-1LB00-0XA0 Coupler Module

Manufacturer:SIEMENS

Model:6ES7 197-1LB00-0XA0

Application Environment:Industrial Automation

Communication Protocol:Profinet

Data Transfer Rate:Up to 100 Mbps

Operating Temperature Range:-25°C to +60°C

Power Supply Voltage:24V DC

Connector Type:M12

Number of Channels:2

Dimensions:112mm x 74mm x 32mm

Weight:0.2kg

    This coupler module boasts a compact design that ensures efficient use of space on control panels without compromising performance. Its robust construction withstands harsh industrial environments, ensuring reliability in even the most challenging conditions.

    Featuring dual communication channels, the module allows for parallel data exchange, significantly increasing the throughput capacity of your automation network. It seamlessly integrates with PROFIBUS DP, PROFINET, and other industrial networks, enhancing system scalability and flexibility.

    With its support for up to 10 Mbps data transfer rates, the coupler module ensures rapid and accurate data transmission, crucial for real-time monitoring and control applications. Its compatibility with a wide range of SIMATIC S7 series CPUs makes it a versatile choice for various automation projects.

    The module’s temperature resistance (-25°C to +60°C) guarantees operational stability across different geographical locations and climates, from cold workshops to hot manufacturing floors. This ensures continuous performance and minimal downtime.

    Installation is straightforward due to its plug-and-play design. Simply connect the module to your S7 controller using standard cables, and configure settings via the SIMATIC manager software. Comprehensive documentation and support resources are available for ease of integration and maintenance.
