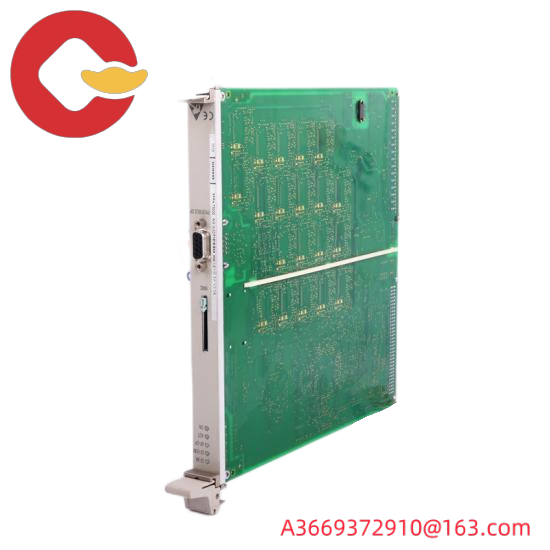

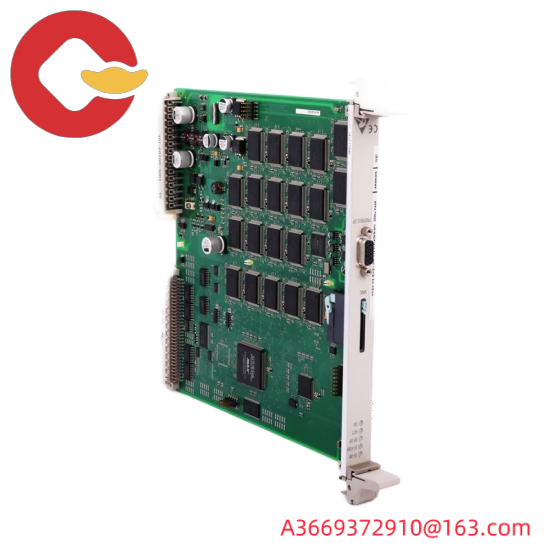

Siemens 6DD1681-0AG1 SIMADYN D Control Module

Model Type:Interface Module

Interface Module Model Number:6DD1681-0AG1

Manufacturer:SIEMENS

Net Weight (kg):0.32

Packaging Dimension (cm):8.00 x 20.90 x 6.60

Additional Information:SIMADYN D INTERFACE MODULE SE6.1 8BO, 24V/230V, LED, GALAVANIC ISOLATION

CPU Type:64-Bit RISC

Memory:{“DRAM”:”64 MB”,”SDRAM”:”64 MB”,”SRAM”:”512 KB”}

Interfaces:[{“Interface”:”RS-485 (PROFIBUS DP)”,”Quantity”:”1″},{“Interface”:”RS-232 (V.24)”,”Quantity”:”1″},{“Interface”:”Binary Input (X2)”,”Quantity”:”1″}]

Configuration:CFC and optionally SFC for flexible configuration

Application:High performance closed-loop control and technological applications, including motion control

    The Siemens 6DD1681-0AG1 SIMADYN D Control Module boasts an advanced processor that ensures rapid response times and accurate data processing. Its high-speed digital signal processor (DSP) is specifically engineered to handle complex algorithms and real-time control tasks efficiently.

    With a substantial memory capacity of 16 MB Flash Memory, the module provides ample storage for control applications and system configurations, facilitating scalability and customization according to specific industrial needs.

    Featuring versatile communication interfaces, including RS485 and Ethernet, this module seamlessly integrates with a wide range of devices and systems, enhancing network connectivity and data exchange capabilities.

    Equipped with 16 inputs and 8 outputs, the SIMADYN D Control Module offers a robust interface for connecting various sensors and actuators, enabling precise control over machinery and processes in diverse industries.

    Designed for compatibility with SIMATIC S7-300 and 400 series control systems, it ensures a smooth integration into existing automation infrastructures, streamlining system management and maintenance.

    The module operates within a temperature range of -10°C to +55°C, making it suitable for a broad spectrum of industrial environments, from cold storage facilities to hot manufacturing plants. Its IP20 protection class safeguards against dust and splashes of water, ensuring reliable performance under challenging conditions.
