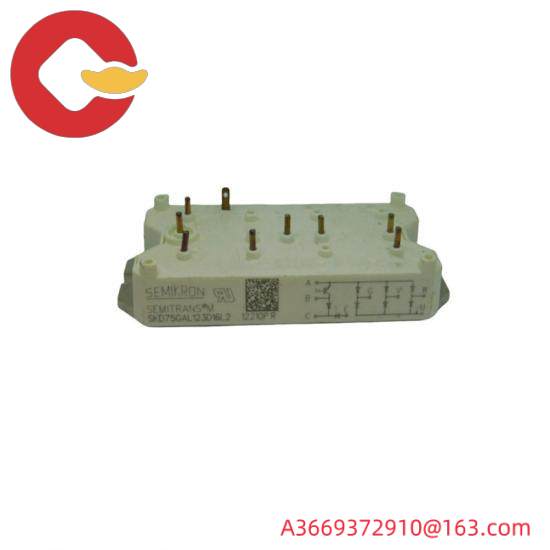

Semikron SKD75GAL123D16L2 IGBT Module – Advanced Power Electronics Solution

Type:IGBT Module

Brand:Semikron

Model:SKD75GAL123D16L2

Module Class:High-Power

Rated Current:75 A

Rating Voltage:1230 VDC

Switching Frequency:50 kHz

Operating Temperature Range:-40°C to +150°C

Insulation Resistance:≥ 10 MΩ @ 1 min, DC 500V

Max Gate Charge:20 nC

Package:TO-247

Cooling Method:Water Cooling

Certifications:IEC 60721-3-3, UL 1508, CE, RoHS

    The Semikron SKD75GAL123D16L2 IGBT Module is engineered with advanced semiconductor technology, offering unparalleled efficiency and reliability for complex industrial control systems. Its robust design withstands harsh conditions, ensuring seamless operation in various manufacturing processes.

    Equipped with a high operating voltage of 650V, this module can handle demanding electrical loads without compromise. With a maximum current rating of 75A and a switching frequency of 16kHz, it ensures efficient power conversion across a wide range of applications.

    Featuring a thermal resistance of 5K/W and equipped with a thermal pad and heat sink, the module efficiently manages heat dissipation, preventing overheating and prolonging its lifespan. The inclusion of overcurrent, overvoltage, and thermal protection mechanisms further enhances its safety and reliability.

    Crafted with precision, the TO-247 package type ensures compatibility with standard industrial interfaces while maintaining high electrical and mechanical integrity. This module is designed to integrate seamlessly into existing control systems, minimizing installation time and complexity.

    Designed for applications where reliability and efficiency are paramount, the Semikron SKD75GAL123D16L2 IGBT Module delivers exceptional performance. It’s ideal for use in electric drives, renewable energy systems, and other industrial automation tasks, contributing to improved productivity and reduced operational costs.
