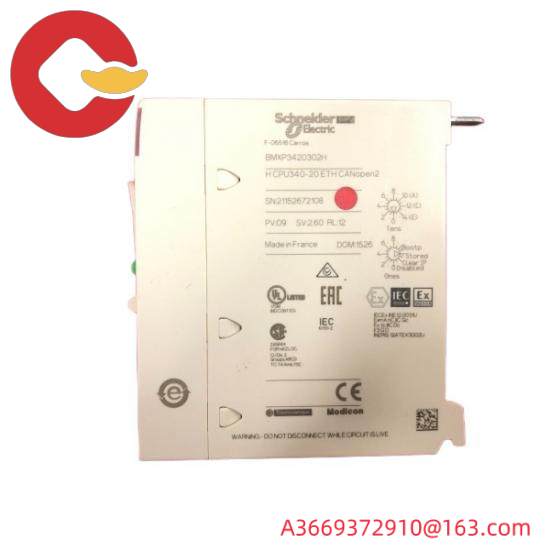

Schneider Electric BMXP3420302H PLC CPU Processor Module

Type:CPU Unit

Main Function:Programmable Logic Controller (PLC)

Processor Module:Schneider Electric (Modicon M340)

Connection Capability:1024 in-rack discrete I/O channels / 256 in-rack Analog I/O channels

Network Ports:1 x CANopen bus + 1 x Ethernet

RAM Capacity:4096kB (3584kB for program + 256kB for data)

Environment Resistance:Conformal coated PCB for harsh environments

Memory Card:Integrated memory card

IP Rating:IP20

Communication Protocol:RS232/485 (non isolated) RTU/ASCII Modbus master/slave mode, USB port for programming

Supply Voltage:(AC) 100-240 V, (DC) 24-48 V

    This Schneider Electric BMXP3420302H PLC Processor Module is engineered for industrial environments, ensuring reliable operation even under challenging conditions. Its conformal coated PCB offers enhanced protection against dust, moisture, and corrosive agents.

    With 1024 channels for discrete I/O and 256 channels for analog I/O, this PLC processor module provides ample capacity for complex control systems. The integrated CANopen bus and Ethernet network port enable seamless communication with other devices.

    The 4096kB RAM (3584kB for program and 256kB for data) allows for efficient execution of control programs and storage of operational data. This ensures smooth and accurate control operations, even in high-demand scenarios.

    Designed with flexibility in mind, this PLC processor module supports various communication protocols including RS232/485 (non-isolated), RTU/ASCII Modbus master/slave mode, and includes a USB port for easy programming and maintenance.

    Installation is straightforward thanks to its compact design and lightweight build. Ideal for integration into existing industrial control systems, this PLC processor module enhances system capabilities and performance.
