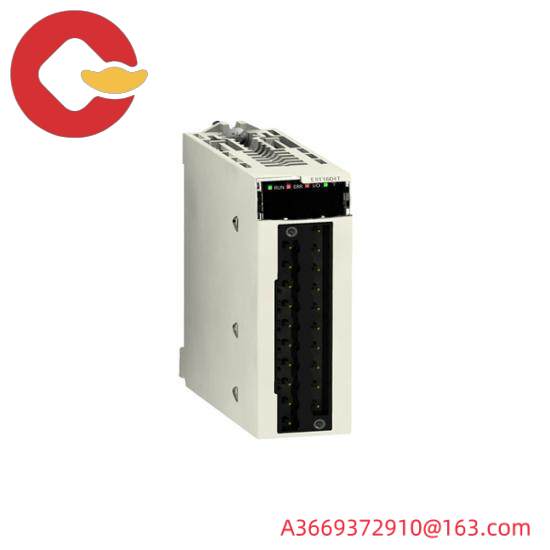

Schneider BMXERT1604T – Modular Control Solution for Industrial Automation

Module Type:Multifunction Input Module

Model Number:BMXERT1604T

Supply Voltage:24 VDC

Current Consumption:0.06 A

Number of Inputs:16

Isolation Level:Class I, Category II

Environmental Protection:IP20

Operating Temperature:-25°C to +60°C

Dimensions:100mm x 67mm x 93mm

Weight:100g

Connection Type:Terminal Block

Communication Protocol:Modbus TCP/IP

Certifications:CE, UL, CSA, EAC

    The Schneider BMXERT1604T multifunction input module is a critical component for modern industrial control systems, offering a comprehensive solution for diverse input requirements. Its advanced design ensures high accuracy and reliability, even under challenging environmental conditions. With an operating voltage range of 100-120V AC, it seamlessly integrates into a wide array of systems, providing robust performance.

    Equipped with 16 versatile inputs, this module is capable of handling various types of signals, from simple digital inputs to more complex data streams. The isolation rating according to EN/IEC 61131-2 Type 2 ensures safe operation and reliable signal transmission, even when interfacing with different systems.

    Each channel can handle up to 12mA of current consumption, making it suitable for a broad spectrum of applications. The Schneider BMXERT1604T is designed with durability in mind, featuring a conformal-coated printed circuit board (PCB) that provides protection against dust, moisture, and other contaminants, ensuring long-lasting performance.

    For connectivity, the module utilizes a screw-terminal connector, which simplifies installation and maintenance. This design choice allows for secure connections without the need for additional wiring, streamlining the setup process and reducing potential errors.

    Incorporating the Schneider BMXERT1604T into your industrial control system not only enhances operational efficiency but also contributes to a safer working environment. Its adherence to stringent industry standards ensures compatibility and reliability, making it a preferred choice among professionals in the field.
