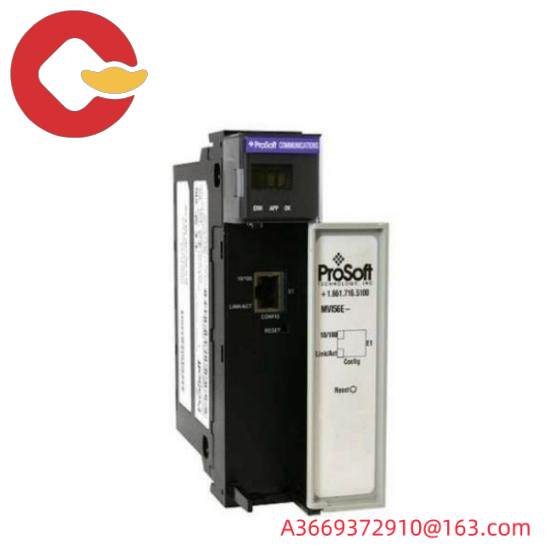

PROSOFT MVI56E-MNETXT Communication Module for Remote Rack Implementations

In stock

The PROSOFT MVI56E-MNETXT Module Card is an advanced solution designed for industrial control systems. It enables seamless integration between devices on Ethernet/IP networks and Allen-Bradley ControlLogix PLCs, offering high-speed communication and robust diagnostic capabilities.

Module Brand:ProSoft

Model:MVI56E-MNETXT

Backward Compatibility:Yes, backward compatible with previous MVI56-MNETR versions

Ethernet Port:10/100 Mbps auto crossover detection

Configuration:User definable module data memory mapping of up to 5000, 16-bit registers

Network Standards:CIPconnect-enabled network configuration and diagnostics monitoring using ControlLogix 1756-ENxT and 1756-CNB modules

I/O Image Size:Reduced I/O image size optimized for remote rack implementations

Communication Standards:EtherNet/IP pass-through communication

Power Requirements:220 VAC, 50/60 Hz

Dimensions:Standard module size compatible with ControlLogix backplane

The MVI56E-MNETXT module from ProSoft Engineering is an advanced solution for industrial Ethernet communication, designed for integration into existing ControlLogix systems. It boasts a backward-compatible design that ensures seamless operation with previous models, making it a versatile choice for system upgrades.

This model supports 10/100 Mbps auto crossover detection, which means you can connect it directly to your network without worrying about cable configurations. Its compatibility with the ControlLogix backplane allows for efficient single-slot installation, saving space and resources.

The module comes equipped with user definable module data memory mapping of up to 5000, 16-bit registers, providing flexibility and scalability to meet the needs of different applications. It also features CIPconnect-enabled network configuration and diagnostics monitoring, enabling remote access and management through Rockwell Automation’s 1756-ENxT and 1756-CNB modules.

A standout feature of the MVI56E-MNETXT is its high-speed Ethernet port that facilitates remote configuration and diagnostics across multiple bridged EtherNet/IP and ControlNet networks. This makes it easier than ever to monitor and maintain your industrial control systems.

For convenience, this module also includes a web server accessible via the Ethernet port, allowing for local access to documentation, module status, and firmware updates. Additionally, ProSoft’s Discovery Service software helps locate MVI56E modules on the network and assign them a temporary IP address for easy configuration.
