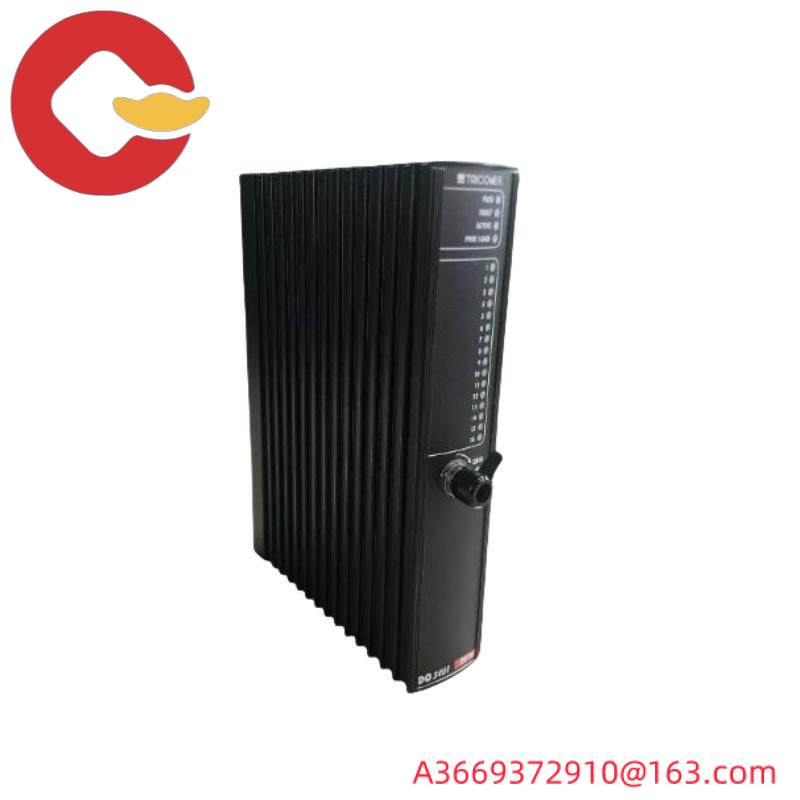

Invensys Triconex 3401 Digital Output Module: High-Performance, Reliable Control Solutions

Manufacturer:Invensys Triconex

Model Number:3401

Product Type:Digital Output Module

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:-0.6 VDC

Output Current (Switching):<4.8 A, self-limiting

Output Current (Typical):3.0 A

Degraded Mode Current:> 0.7 A, self-limiting

Loop-back Thresholds:0–5 VDC = Off region, 6–14 VDC = transition region, 15–30 VDC = On region

Leakage to Load (Off):Minimal

Commoned Points:16

Field Alarms:Loss of field power, output point shorted

On or Off Alarm:On or Off

Weight:0.5 kg

    The Invensys Triconex 3401 Digital Output Module is engineered to deliver exceptional reliability and performance in harsh industrial settings. This module is an essential part of advanced process control systems, providing precise digital outputs that are critical for system responsiveness and efficiency.

    With its robust design, the 3401 Module is capable of handling a wide range of voltages and currents, ensuring compatibility and stability across various industrial applications. Its ability to detect and respond to field power loss and output point shorts enhances safety and system integrity.

    Featuring up to 16 commonly used output points, the Invensys Triconex 3401 Digital Output Module provides flexibility in configuring control systems tailored to specific process needs. The self-limiting switching current ensures that the system operates within safe parameters, reducing the risk of overcurrent conditions.

    This module is designed with modern manufacturing techniques, incorporating high-quality materials that withstand the rigors of continuous operation in demanding environments. It is compatible with leading automation platforms, facilitating seamless integration into existing control systems.

    The Invensys Triconex 3401 Digital Output Module is a testament to Invensys Triconex’s commitment to delivering innovative and dependable solutions for industrial automation. Its combination of advanced technology, durability, and reliability makes it an ideal choice for enhancing the operational efficiency and safety of industrial processes.
