Dimension (LxWxH):33 cm x 10.2 cm x 4.8 cm
Weight:0.54 kg
Material:High-grade copper alloy and reinforced epoxy resin
Operating Temperature Range:-20°C to +70°C
Current Handling Capacity:Up to 15 A
Voltage Rating:AC/DC up to 400 V
Number of Terminals:48
Compatibility:Mark VI series of turbine control systems

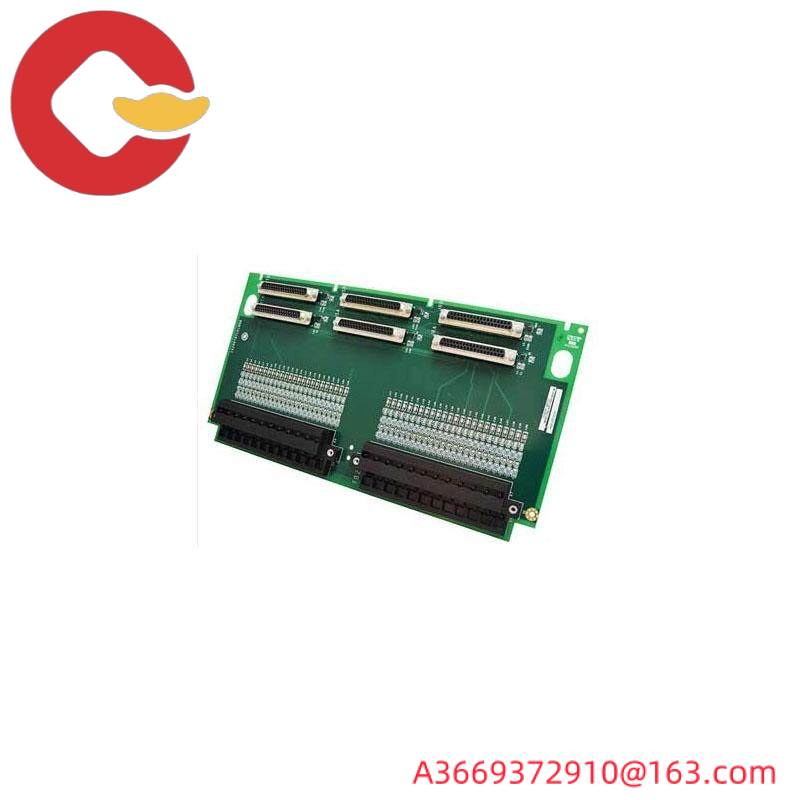

Crafted from high-grade copper alloy, the GE IS200TBTCH1BBB Rectangular Circuit Board ensures robust performance in demanding industrial environments.
Featuring two distinctive jack connector ports, JA1 at the top and JB1 at the bottom, this circuit board facilitates easy integration and connectivity within complex systems.
Located near the center, two lines of capacitors (L series) add to the board’s electrical stability, providing critical support for signal processing tasks.
Surrounded by a series of small, solid silver capacitors, the board is meticulously designed to enhance power distribution and minimize electrical noise.
Two long lines of small blue resistors contribute to precise voltage regulation, ensuring optimal performance across various operational conditions.
