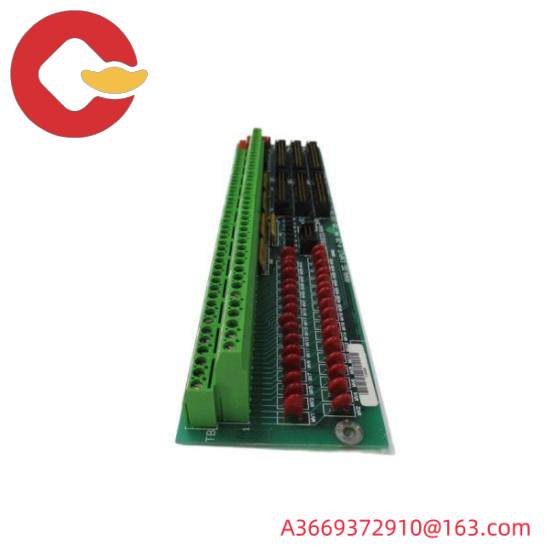

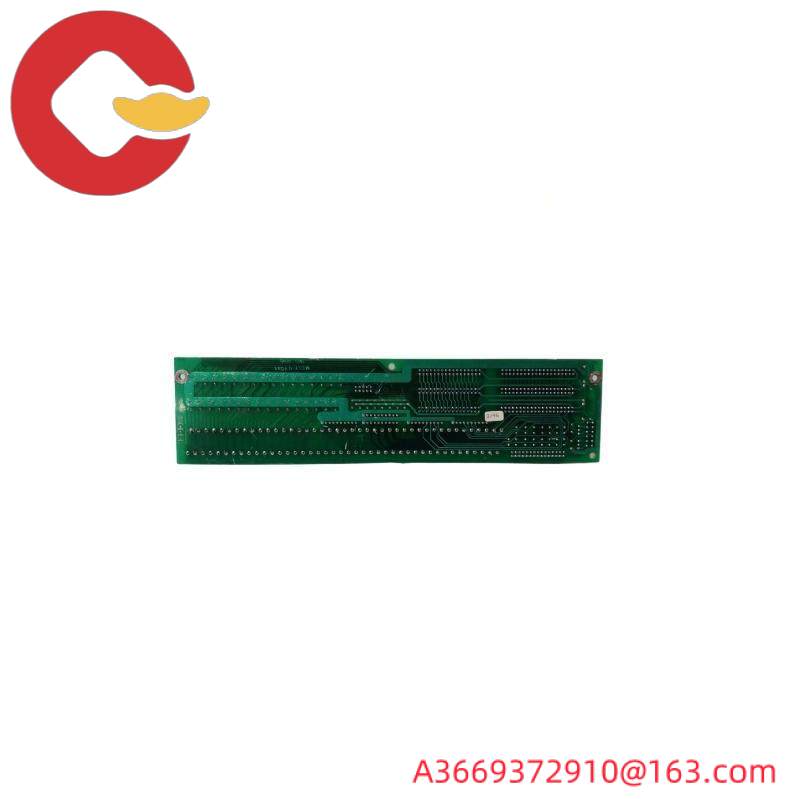

General Electric DS200TBQCG1AAA Analog Input Milliamp I/O Termination Module

In stock

The GE DS200TBQCG1AAA is a high-performance Analog Input Milliamp I/O Termination Module designed specifically for the Mark V DS200 Series of turbine control systems, ensuring precise and reliable data transmission.

Part Number:DS200TBQCG1AAA

Series:Mark V

Manufacturer:General Electric

Product Type:RST Analog Termination Board

Functional Acronym:TBQC

Number of TBQC Connections:5

Connections:[“JBR”,”JFR”,”TEST”,”JBS/T”,”JFS/T”]

Technical Documentation:GEH-6153 Instruction Manual

Designed by General Electric, the DS200TBQCG1AAA module is an integral part of the Mark V DS200 turbine control systems. It is meticulously engineered to ensure high accuracy and reliability in industrial applications.

This module is equipped with voltage-limiting hardware components including various rectifiers, capacitors, and diodes. These components are essential for ensuring stable electrical signals and protecting sensitive electronics.

The DS200TBQCG1AAA module features a thick, robust layer of normal-style PCB surface coating. This coating protects the board from environmental factors such as dust, moisture, and physical damage, thereby extending its operational lifespan.

Installation of the DS200TBQCG1AAA module is straightforward and can be easily integrated into existing control systems. Its standardized connections facilitate quick and reliable integration without requiring extensive modifications.

With its precise analog input processing capabilities, the DS200TBQCG1AAA module enhances the performance and efficiency of industrial control systems. It is ideal for applications where accurate measurement and control of milliamp signals are crucial.

GE DS200TBQCG1AAA
