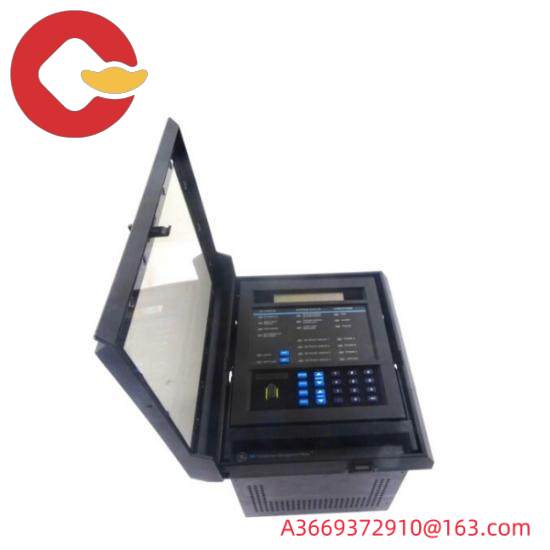

GE SR745-W2-P5-G5-HI-A-R-T Relay – Advanced Transformer Protection System

Windings Per Phase:2

Resistant Temperature Device (RTD) Type:3 wire; 100 Ω Nickel, 120 Ω Nickel, 100 Ω Platinum

Analog Output Maximum Load:10 kΩ at 0 to 1 mA, 600 Ω at 4 to 20 mA

Maximum Continuous Voltage Output:273 V

Display Type:40 character Enhanced LCD

Dimensions:9”H, 7 ⅛”D, 7”W

Control Power Range:90 to 300 V DC; 70 to 265 V AC at 48 to 62 Hz

    The GE SR745-W2-P5-G5-HI-A-R-T Relay is a robust solution for managing and safeguarding transformers in demanding industrial environments. It boasts an enhanced 40-character LCD display for clear status monitoring and alerts, ensuring quick response times to critical system events.

    Equipped with adaptive features, this relay dynamically adjusts to changing conditions, providing real-time protection against overloads, overexcitations, and CT ratio mismatches, thus extending the lifespan of transformer elements.

    The relay supports a wide range of operational voltages, making it versatile for different industrial applications. Its compact design ensures efficient space utilization while maintaining high performance standards.

    User-friendly controls and a durable construction guarantee reliable operation under varying environmental conditions, backed by industry-leading certifications for safety and quality assurance.

    Designed for easy integration into existing systems, the GE SR745-W2-P5-G5-HI-A-R-T Relay comes in a new-in-box condition, ready for immediate deployment in transformer protection and management tasks.
