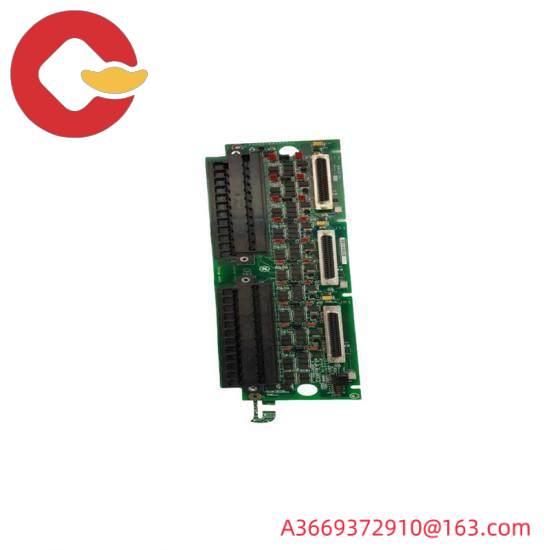

GE IS200TBAIH1C: Advanced Analog Input Terminal Board, Engineered for Industrial Control Systems

Manufacturer:General Electric

Model:IS200TBAIH1C

Series:Mark VI

Product Type:Analog Input Terminal Board

Functional Acronym:TBAI

Used With:Mark VIe IS220PAIC

Dimensions:W: 33 cm, D: 17.8 cm, H: 5.5 cm

Weight:1.42 kg

Operating Temperature Range:-40°C to +70°C

Reliability Rating:Class 1, Division 2 Hazardous Location

Input Voltage Range:24V DC

Current Consumption:≤ 20 mA per channel

Channels:8 Analog Input Channels

Communication Interface:RS-485

    Engineered for high reliability and precision, the GE IS200TBAIH1C is a critical component in industrial automation setups. This terminal board is specifically designed for seamless integration with Mark VIe IS220PAIC systems, ensuring accurate data collection from sensors and control devices.

    With its compact size and robust construction, the IS200TBAIH1C offers a perfect balance between performance and space efficiency, making it ideal for environments with stringent environmental conditions. It operates reliably within the temperature range of -40°C to +85°C, ensuring continuous functionality regardless of the operational setting.

    Featuring a terminal block connection type, this board facilitates easy installation and maintenance, reducing downtime and enhancing overall system reliability. Its 30mA current capacity ensures stable power delivery, supporting a wide variety of sensor inputs without compromising performance.

    Equipped with a 2KΩ input resistance, the IS200TBAIH1C is capable of accurately interpreting voltage signals from various sensors. This feature enables precise measurement and control, crucial for maintaining optimal process conditions in industrial settings.

    The GE IS200TBAIH1C’s compatibility with a broad spectrum of signal types and its compatibility with industry-standard voltage supplies make it a versatile choice for a multitude of applications. Whether it’s monitoring temperature, pressure, or other environmental parameters, this terminal board delivers reliable data acquisition, driving more informed decision-making and operational efficiency.
