GE IS200EDCFG1A: Precision Control for EX2100 Excitation Systems

In stock

The GE IS200EDCFG1A Exciter DC Feedback Board is a specialized component designed for high-speed data transmission in GE’s EX2100 Series Excitation Control Systems. It efficiently measures field voltages and currents at the SCR bridge, optimizing system performance through precise feedback mechanisms.

Field Voltage Measurement:Accurate up to 500V DC

Current Measurement Resolution:0.01A accuracy

Fiber Optic Link Speed:100Mbps

Environmental Operating Temperature:-20°C to +60°C

Power Consumption:Less than 5W

Material:High-grade aluminum alloy with corrosion-resistant coating

Dimensions:170mm x 120mm x 30mm

Weight:Approximately 0.5kg

The GE IS200EDCFG1A is an indispensable part of the excitation control system, ensuring optimal performance and reliability in industrial power generation applications. Its compact yet robust design is meticulously engineered to withstand harsh operating environments, making it suitable for continuous heavy-duty use.

Utilizing state-of-the-art technology, this circuit board accurately measures the field voltages and currents, essential for maintaining stable and efficient operation in turbines. The precision measurement capabilities are further enhanced by the integration of a DC shunt system within the circuit, providing real-time data for critical decision-making processes.

Incorporating a high-speed fiber optic link through its EISB board, the IS200EDCFG1A ensures rapid and reliable data transmission, crucial for monitoring and control systems that demand minimal latency and maximum accuracy. This feature is particularly advantageous in complex power generation setups where timely information exchange can significantly impact operational efficiency.

Crafted from high-grade materials to ensure durability and resistance against corrosion, the IS200EDCFG1A is a testament to GE’s commitment to quality and reliability in industrial solutions. Its modular design facilitates easy installation and maintenance, minimizing downtime and enhancing system availability.

For those seeking unparalleled performance, reliability, and ease of integration, the GE IS200EDCFG1A is the preferred choice. It is not just a component; it’s a strategic investment in your power generation infrastructure, backed by GE’s extensive experience and support in the industrial automation sector.

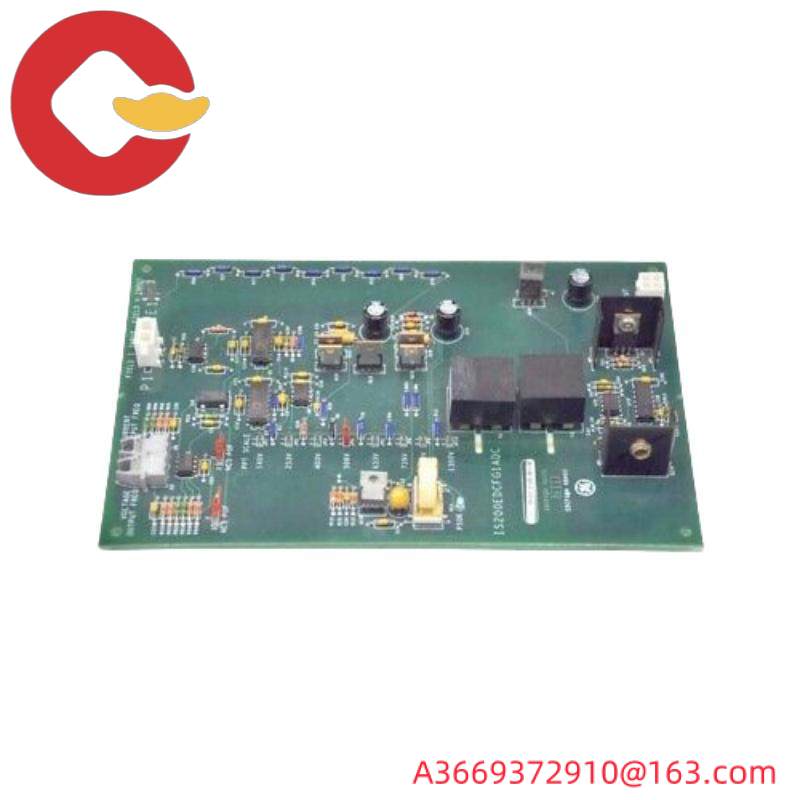

GE IS200EDCFG1A Circuit Board
