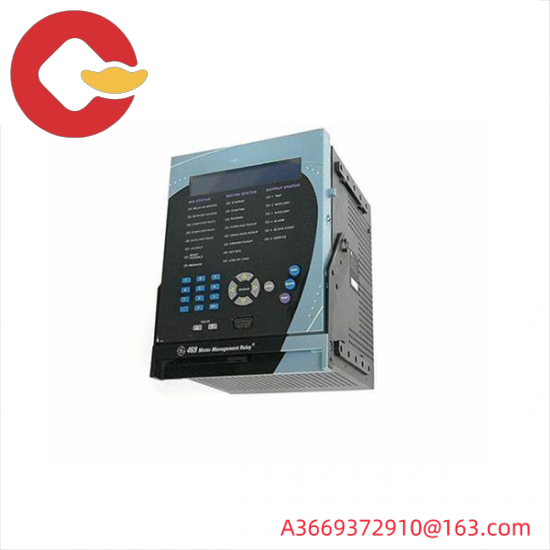

GE FANUC 469-P1-HI-A20-T-H: Advanced Motor Management Relay, Enhancing System Reliability & Efficiency

Model Number:469-P1-HI-A20-T-H

Relay Type:Motor Management Relay

Application Category:Industrial Control

Communication Interface:RS232, RS485

Power Supply Range:90-300V DC, 70-265V AC

Current Measurement:Up to 4 Analog Outputs

Trip Relays:Up to 6

Protection Features:Overvoltage, Undervoltage, Overload

Temperature Monitoring:RTD Inputs for Actual and Hottest Point Detection

Software Compatibility:EnerVista 469 Software

Operating Frequency:48-62Hz

Enclosure Rating:20-X

Insulation Voltage:300V

Pollution Degree:Class 2

Motor Protection:Advanced, Adaptive Capabilities

Durability:Rugged Construction for Industrial Environments

Ease of Use:User-friendly Interface and Configuration

    The GE FANUC 469-P1-HI-A20-T-H Motor Management Relay is designed to optimize motor operation, delivering unparalleled performance and reliability in demanding industrial environments. Its advanced adaptive capabilities ensure efficient motor protection against overcurrent, overload, and short-circuits, significantly reducing maintenance needs and enhancing operational uptime.

    Equipped with an intuitive front panel and enhanced communication interfaces, the relay simplifies setup and configuration, allowing for easy integration into existing control systems. The relay supports RS232 and RS485 ports, enabling direct connections to computers running specialized software for enhanced setpoint editing, data visualization, and trend analysis.

    With a high accuracy current measurement capability up to 390/500mA and a wide operating voltage range of 90-300VDC, 70-265VAC, the relay ensures precise monitoring and control of motors under varying conditions. Its robust IP20 enclosure rating allows for reliable operation in indoor settings, while its 48-62Hz frequency compatibility ensures seamless integration across different power systems.

    Featuring up to six programmable relay outputs, the GE FANUC 469-P1-HI-A20-T-H Motor Management Relay offers versatile control options for diverse industrial applications. This enables users to tailor the relay’s functionality to meet specific operational requirements, optimizing motor performance and enhancing system efficiency.

    Incorporating advanced motor management functions, the relay continuously monitors motor health, detecting anomalies early and providing predictive maintenance insights. This proactive approach minimizes unexpected failures, extends motor lifespan, and reduces maintenance costs, contributing to long-term operational savings and increased productivity.
