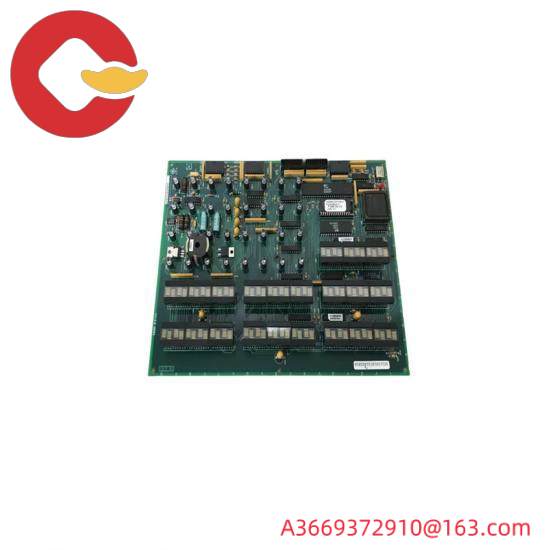

GE DS200KLDCG1AAA – Advanced LED Display Board for Turbine Control Systems

Model Number:DS200KLDCG1AAA

Manufacturer:General Electric

Functional Description:LED/Key/Display Board

Series:Mark V

Number of LEDs:32

Character Displays:21 x 4-character

Jumper:1 x 40-pin connection

Coating:Normal

Revisions:3

Backward Compatibility:First two revisions

Assembly Type:Normal

Operating Temperature:-40°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:158mm x 100mm

Weight:200g

    Engineered for precision and reliability, the DS200KLDCG1AAA LED Display Board is an essential component of General Electric’s Mark V Turbine Control System, offering clear and comprehensive data representation.

    Featuring 32 LEDs and 21 four-character displays, this board ensures that all operational parameters are presented with clarity and detail, facilitating quick decision-making and maintenance.

    The inclusion of a single jumper switch allows for flexible customization of board behavior, catering to diverse operational needs without compromising system integrity.

    Crafted with a normal coating for durability and resistance to industrial environments, this board ensures long-lasting performance in challenging conditions.

    Backwards compatibility with the first two revisions of the Mark V Series ensures that the DS200KLDCG1AAA seamlessly integrates with older systems, providing a smooth transition to advanced functionality without the need for extensive system modifications.
