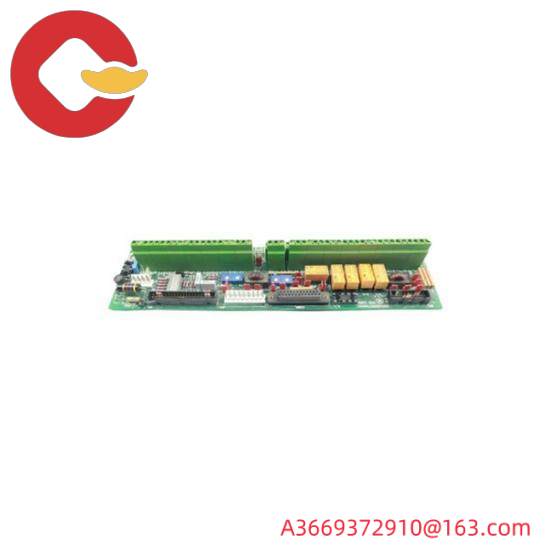

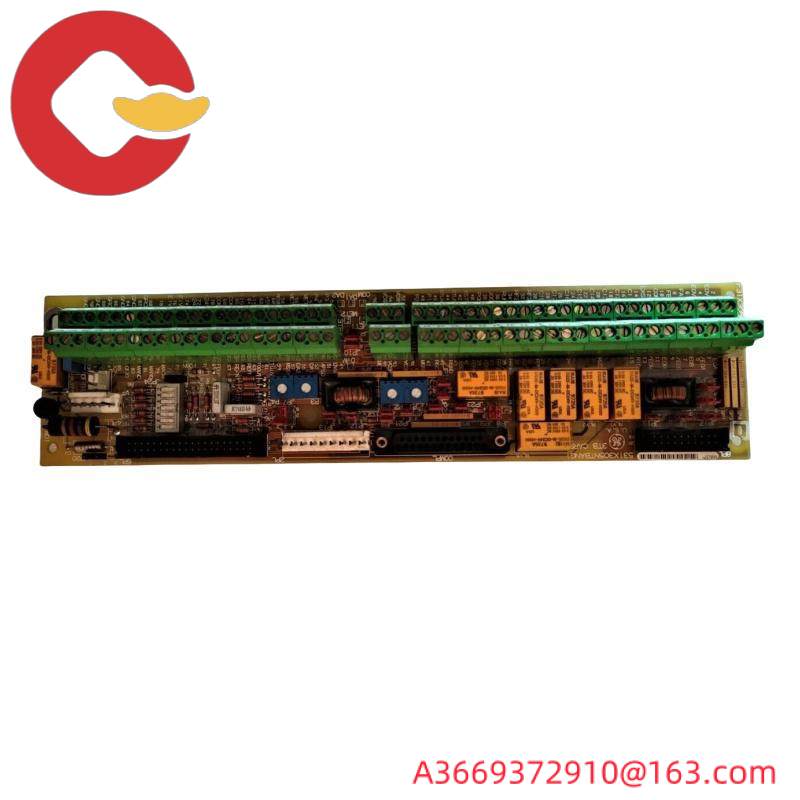

GE 531X305NTBANG1 NTB/3TB Terminal Board for Industrial Control Systems

In stock

The 531X305NTBANG1 is a high-performance terminal board designed by General Electric for industrial control systems. It serves as a critical interface between control devices and external signals, offering regulated and unregulated power supplies, encoder interfaces, and relay outputs.

Model Number:531X305NTBANG1

OEM:GE Motors and Industrial Systems

Input Power:125 VAC / 24 VDC

Output Power:5 VDC / 15 VDC

Relay Outputs:7 (Form A/Form C)

Analog I/O Scaling:4 potentiometers

Encoder Interface:Differential A quad B (Optically Isolated)

Designed specifically for GE drive or exciter cabinets, this interface board plays a critical role in connecting external signals with control devices, ensuring seamless communication and data exchange.

This board supports both regulated and unregulated power supplies, which are crucial for powering digital encoders and other peripheral devices with precision and reliability.

The board comes equipped with seven relays that offer either Form A or Form C outputs, each with a contact rating of 120 VAC. This versatility allows it to handle a wide range of applications and configurations.

Low-level analog I/O can be easily scaled using the four potentiometers located on the board, making it simple to adjust settings according to specific application requirements.

With its durable construction and advanced engineering, the 531X305NTBANG1 ensures long-term reliability and performance, ideal for industrial environments where consistent operation is paramount.
