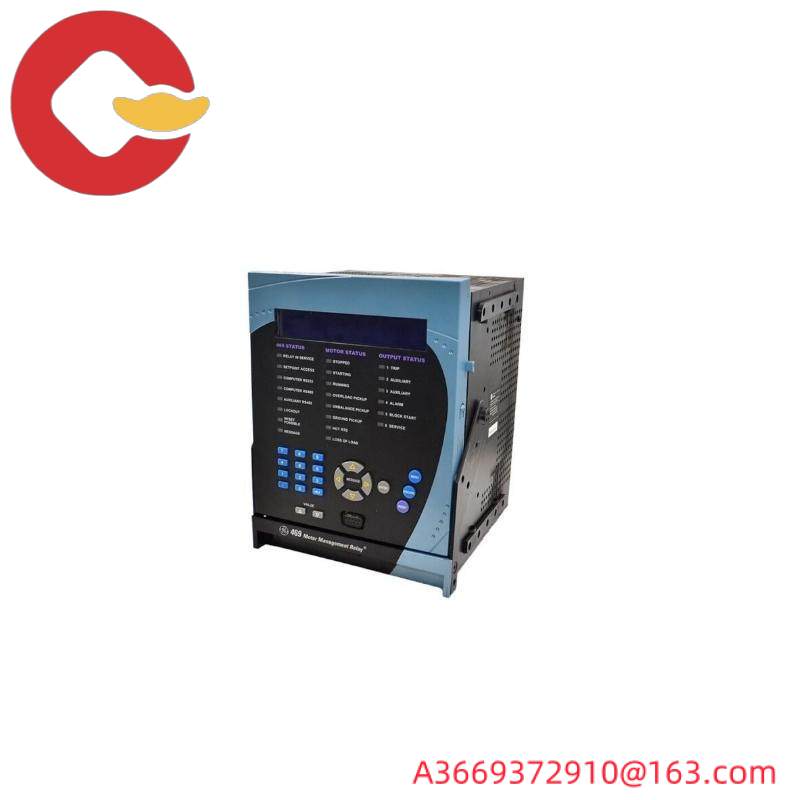

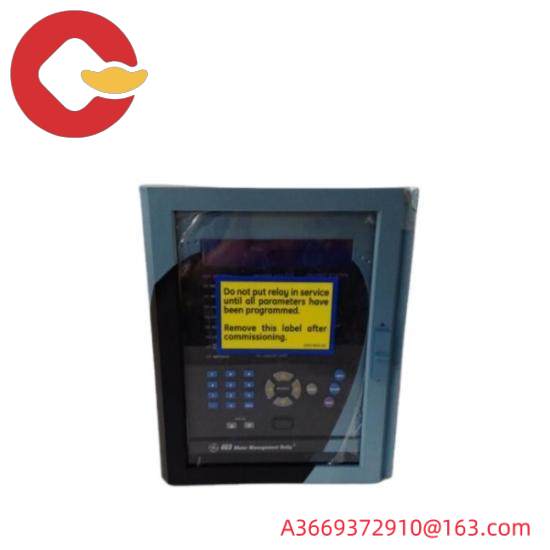

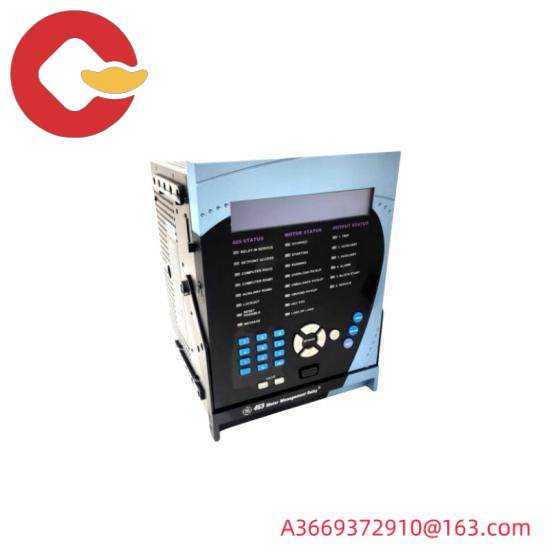

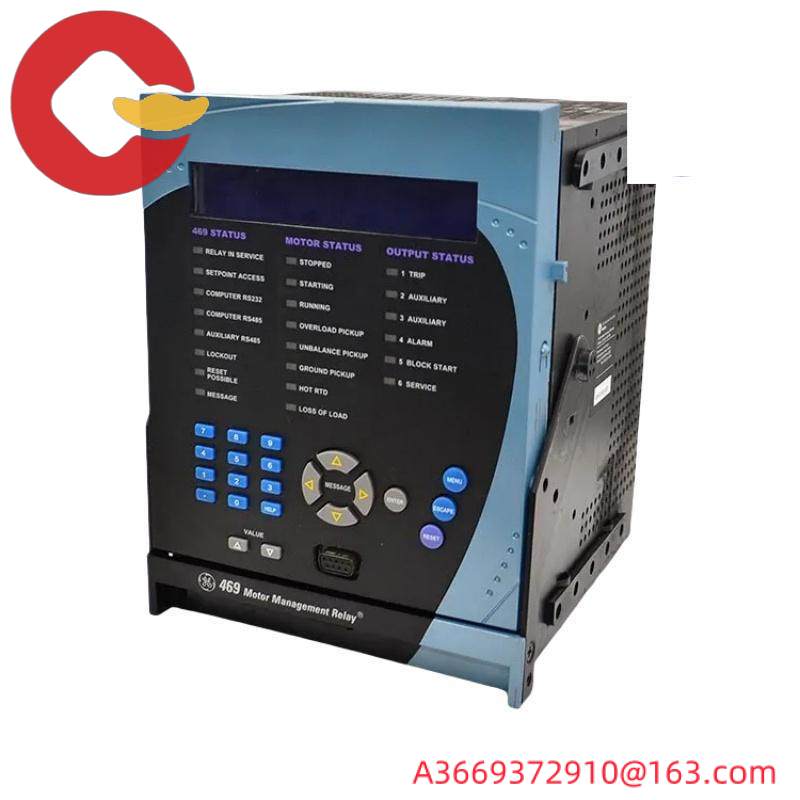

GE 469-P5-HI-A20-E: Motor Protection Relay for Medium and Large Motors

In stock

The GE 469-P5-HI-A20-E is a robust Motor Management Relay designed for protecting and managing medium to large motors in industrial applications. It offers advanced monitoring, control, and protection capabilities.

Sku:E12940

GE No.:469-P5-HI-A20-E

Current Ratings:390/500 mA (MAX)

Line Voltage:90-300VDC, 70-265VAC

Enclosure Rating:20-X

Frequency Range:48-62Hz

Phase CT:5A

Overvoltage Category:II

Insulation Voltage:300V

Pollution Degree:2

Analog Outputs:4

Digital Inputs:9 opto-isolated inputs

Operating Temperature:-40°C to +60°C

Storage Temperature:-40°C to +80°C

The GE 469-P5-HI-A20-E is meticulously engineered for industrial applications where reliability and performance are paramount. This motor management relay provides unparalleled protection and control for medium and large motors.

Featuring multiple RTD inputs, this relay accurately determines the actual temperature and hottest point of the motor system, ensuring optimal operational conditions. The RTDs include three-wire configurations with resistances of 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum.

Designed for harsh environments, the unit comes with conformal coating, making it highly resistant to chemical exposure and suitable for a wide range of industrial settings. Its advanced front panel display enhances user interface and control capabilities.

With four 0 to 1 mA analog outputs and nine opto-isolated digital inputs, the 469-P5-HI-A20-E ensures seamless integration with existing control systems. The relay supports a broad range of operating temperatures, making it versatile for various climatic conditions.

This model is equipped with EnerVista 469 Setup software, providing users with comprehensive tools for setup, monitoring, and maintenance. Trust in the robust design and reliable performance of the GE 469-P5-HI-A20-E for your motor management needs.
