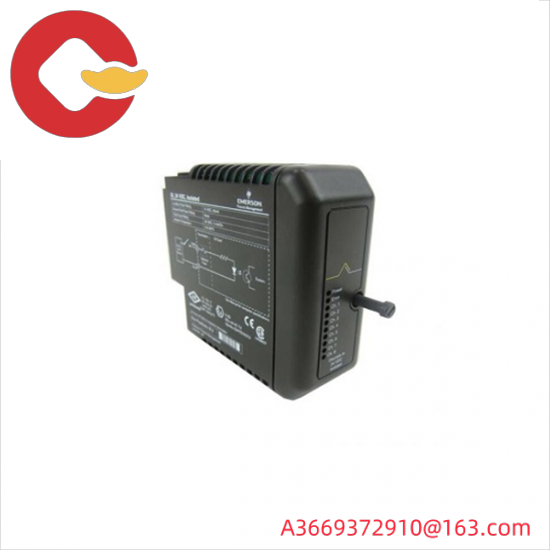

EMERSON KJ3224X1-BA1: Thermocouple mV Series 2 – Precision Temperature Sensing Solution

Thermocouple Compatibility:Compatible with various thermocouple types for versatile temperature measurement applications

Range:-200°C to +1000°C (-392°F to +1832°F)

Signal Output:0 to ±10mV, linear or non-linear signal output depending on the thermocouple type

Accuracy:+/-0.1% of reading ± 1 LSB over full range

Operating Voltage:10V DC to 36V DC

Power Consumption:Typically < 1mA at nominal output current

Operating Temperature:-40°C to +85°C (-40°F to +185°F)

Humidity Range:0% to 95% RH, non-condensing

Enclosure Rating:IP65/IP67, dustproof and waterproof

Connectivity:4-wire connection with shielded cable

Mounting:Panel mount with mounting bracket included

    This module is meticulously engineered for seamless integration into Emerson’s DeltaV system, ensuring reliability and efficiency in real-time data acquisition and process control.

    Crafted with precision, it supports a wide range of thermocouples, providing accurate temperature readings across various industrial environments.

    With its compact yet robust design, the KJ3224X1-BA1 is built to withstand harsh conditions, making it suitable for applications in chemical plants, oil refineries, and manufacturing facilities.

    Equipped with advanced signal processing algorithms, it minimizes noise and interference, delivering unparalleled measurement accuracy.

    Designed with ease-of-use in mind, this module comes with intuitive configuration options and diagnostics, facilitating quick installation and maintenance without compromising on performance.
