Beckhoff BK5220 DeviceNet Bus Coupler, Advanced Industrial Networking Solution

In stock

The Beckhoff BK5220 Bus Coupler is an advanced device for extending DeviceNet communication capabilities, seamlessly integrating into industrial control systems for enhanced efficiency and connectivity.

Product Type:Other

Product ID:BK5220

Beckhoff Type Designation:Other

Number of I/O Stations:64

Operating Modes:Bit Strobe, Polling, Cyclic, Change of State (COS)

Number of Bus Terminals:64

Max. Number of Bytes Fieldbus:512 input, 512 output

Digital Peripheral Signals:1,020 inputs/outputs

Power Supply:24V DC (-15% / +20%), through bus cable, 11…25V (DeviceNet compliant)

Input Current:70mA + (total K-bus current)/4, max. 500mA

Current Supply K-bus:1750mA

Weight:Approx. 130g

The BK5220 Bus Coupler from Beckhoff is engineered for superior performance in industrial automation systems. It seamlessly connects multiple I/O stations, ensuring reliable data exchange within DeviceNet networks.

With its extensive capability to handle up to 64 I/O stations and a max. of 512 bytes per fieldbus, this coupler supports high-speed communication essential for complex factory operations.

Featuring a robust design that includes support for diverse operating modes such as Bit Strobe, Polling, Cyclic, and Change of State (COS), the BK5220 ensures flexible and efficient data processing.

The coupler’s capacity to manage up to 1,020 digital peripheral signals enables seamless integration with a wide range of devices, enhancing system scalability and adaptability.

Equipped with a 24V DC power supply (with compliance to DeviceNet specifications) and a weight of approximately 130g, the BK5220 is designed for ease of installation and maintenance, contributing to a streamlined operational environment.

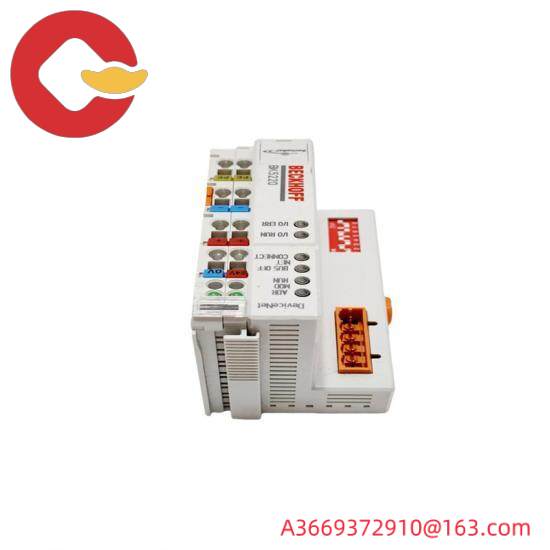

BECKHOFF BK5220 Bus Coupler
