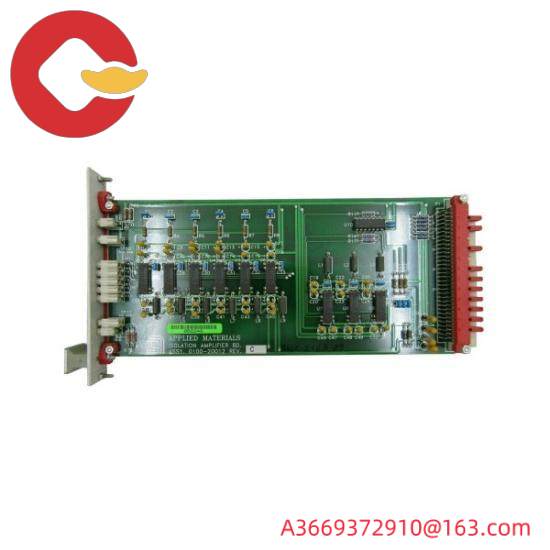

AMAT 0100-20012: PCB Isolation Amplifier Board for Industrial Control Solutions

Operating Voltage:DC 5V to 24V

Current Consumption:≤ 10mA

Input Signal Range:± 20mV to ± 20V

Output Signal Range:± 0.1V to ± 20V

Input Impedance:50kΩ

Output Impedance:50Ω

Isolation Voltage:2000V AC

Operating Temperature:-40°C to +85°C

Storage Temperature:-40°C to +125°C

Dimensions:50mm x 40mm x 10mm

Weight:30g

    The AMAT 0100-20012 PCB Isolation Amplifier Board is engineered to provide superior signal integrity and noise immunity in harsh industrial environments. Its high isolation voltage ensures that electrical disturbances do not affect the control signals, leading to enhanced system reliability.

    This amplifier board features a wide input range that covers most industrial signals, making it versatile for various applications. It efficiently converts input signals into output signals within a safe range, ensuring accurate data processing.

    Built with robust FR-4 PCB material, the board withstands extreme temperatures and environmental conditions, guaranteeing longevity and reliability. The SMD design allows for efficient heat dissipation and compact assembly.

    Equipped with a DIN 41612 connector type, the AMAT 0100-20012 is compatible with a wide range of industrial equipment and interfaces seamlessly, streamlining integration into existing systems.

    Designed for ease of use and maintenance, the isolation amplifier board requires minimal power consumption, reducing operational costs and improving system efficiency. Its IP20 protection class ensures basic dust protection, enhancing durability in industrial settings.
