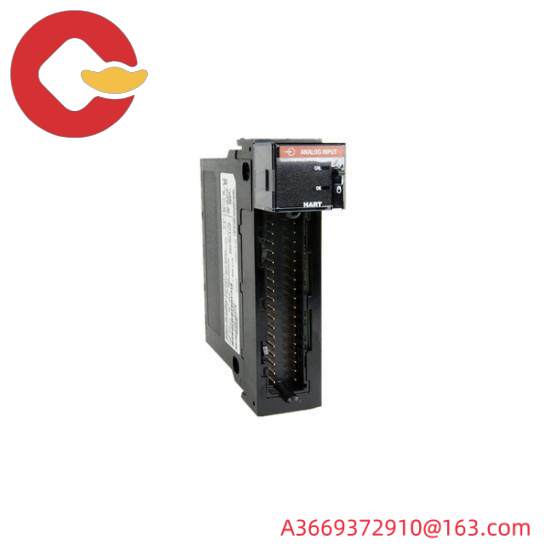

Allen-Bradley 1756-IF16IH Industrial Analog I/O Modules, Designed for Seamless Integration & Reliable Performance

Model Type:ControlLogix

Model Number:1756-IF16IH

Manufacturer(s):Allen-Bradley

Analog Input Channels:16

Analog Output Channels:16

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP

Enclosure Type:Open

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Isolation:30 V Continuous

    The Allen-Bradley 1756-IF16IH modules boast a compact design that ensures efficient use of space in industrial environments. They feature high-speed communication capabilities, allowing for real-time data exchange with ControlLogix controllers.

    With a robust 16-point analog input capacity, these modules can accurately measure and process signals from various sensors, making them ideal for monitoring and controlling temperature, pressure, and other critical parameters in manufacturing lines.

    Each channel supports both single-ended and differential inputs, offering flexibility in signal acquisition. The output channels provide precise control over actuators, enabling smooth operation and precise adjustments in process control scenarios.

    These modules are equipped with an open-type enclosure, ensuring reliable performance in challenging industrial settings. Their temperature and environmental ratings guarantee stable operation across a wide range of conditions, enhancing their durability and reliability.

    Built-in Ethernet/IP interface simplifies integration with existing network infrastructures, reducing setup time and complexity. The inclusion of a USB port further enhances connectivity options, facilitating easy firmware updates and data management.
