Adept Motion Control: Kinetix 6000 Series – 2098-DSD-HV150-SE4 Drives, Industrial Automation Core

Input Voltage (AC):230 to 480 VAC

Input Frequency (AC):47 to 63 Hz

Nominal Input Current (AC):7 A

Continuous Output Current:11 A (0-peak)

Intermittent Output Current:22 A (0-peak)

Dimensions (WxHxD):242.2 x 360.7 x 138.7 mm

Operating Temperature Range:-20°C to 50°C

Relative Humidity Range:5% to 95%

Communication Interface:RS232 & RS485 with DeviceNet

Encoder Compatibility:Multi-turn absolute encoders

Overvoltage Protection:Up to 810 VDC

Output Power:5 kW

EMC Compliance:Meets Directive requirements

Electrostatic Discharge Sensitivity:With static control precautions during installation

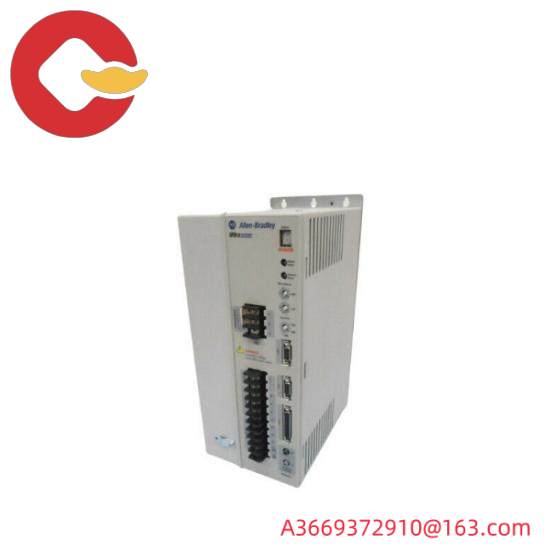

    The Kinetix 6000 Series 2098-DSD-HV150-SE4 Drives from Rockwell Automation are engineered for advanced motion control applications, providing unparalleled performance and reliability. These drives are built to withstand harsh industrial environments, ensuring they deliver consistent results under demanding conditions.

    Featuring a compact design that measures 242.2 x 360.7 x 138.7 mm, these drives are easy to integrate into existing machinery setups. Their robust construction and high-quality materials guarantee durability and longevity, reducing maintenance costs and downtime.

    Equipped with state-of-the-art communication protocols like RS232, RS485, and DeviceNet, these drives offer seamless integration with Rockwell’s ControlLogix platform and SERCOS interfaces, making them ideal for complex automation systems. They support multi-turn absolute encoders, enabling precise position feedback and enhancing overall system accuracy.

    The drives come with a comprehensive set of features, including overvoltage protection up to 810 Volts DC, which safeguards against electrical hazards and ensures safe operation. With a continuous output power of 5 kilowatts, these drives are capable of handling heavy loads and delivering high torque outputs.

    Designed with electrostatic discharge sensitivity in mind, the 2098-DSD-HV150-SE4 Drives require static control measures during installation, servicing, and repair to prevent potential damage. The inclusion of a DeviceNet adapter facilitates direct communication between network devices and the drive, eliminating the need for network scanners and streamlining data exchange within the system.
