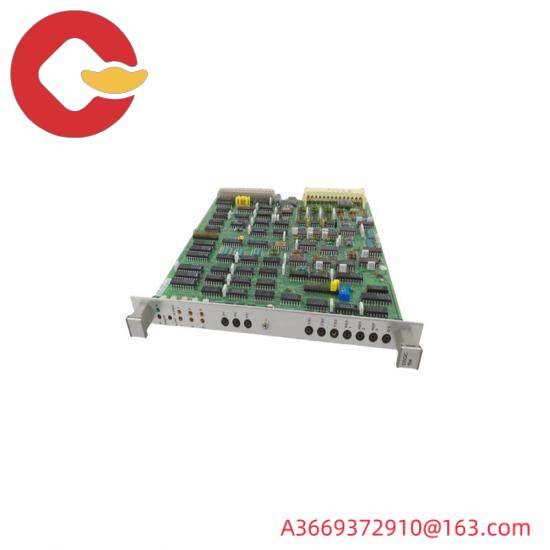

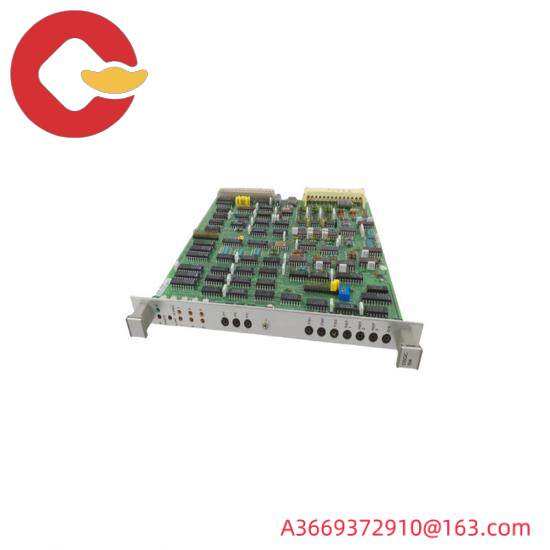

ABB YB161102-AE/7 Circuit Board Resolver Digital Board

Manufacturer:ABB

Model:YB161102-AE/7

Type:Circuit Board

Subtype:Resolver Digital Board

Application Range:From 1000 to 2400 RPM

Resolution Accuracy:0.01°

Power Supply Voltage:DC 10V to 30V

Operating Temperature:-20°C to +55°C

Material:High-grade aluminum alloy for robustness and heat dissipation

Connection Type:RS-485 interface for seamless integration

    The ABB YB161102-AE/7 is designed for high-reliability operation in harsh industrial environments, ensuring consistent performance across a wide range of applications.

    This resolver digital board offers precise angular measurements and integrates seamlessly with ABB’s advanced industrial automation systems, enabling sophisticated control over machinery and processes.

    Equipped with an aluminum alloy casing, the board provides robust protection against environmental stresses, maintaining its functionality even in challenging conditions.

    Supporting a broad operating temperature range from -20°C to +55°C, this board ensures continuous performance throughout the year, making it ideal for global deployment.

    Featuring an RS-485 interface compatible with MODBUS RTU protocol, the ABB YB161102-AE/7 facilitates easy integration with existing control systems, streamlining automation projects.
