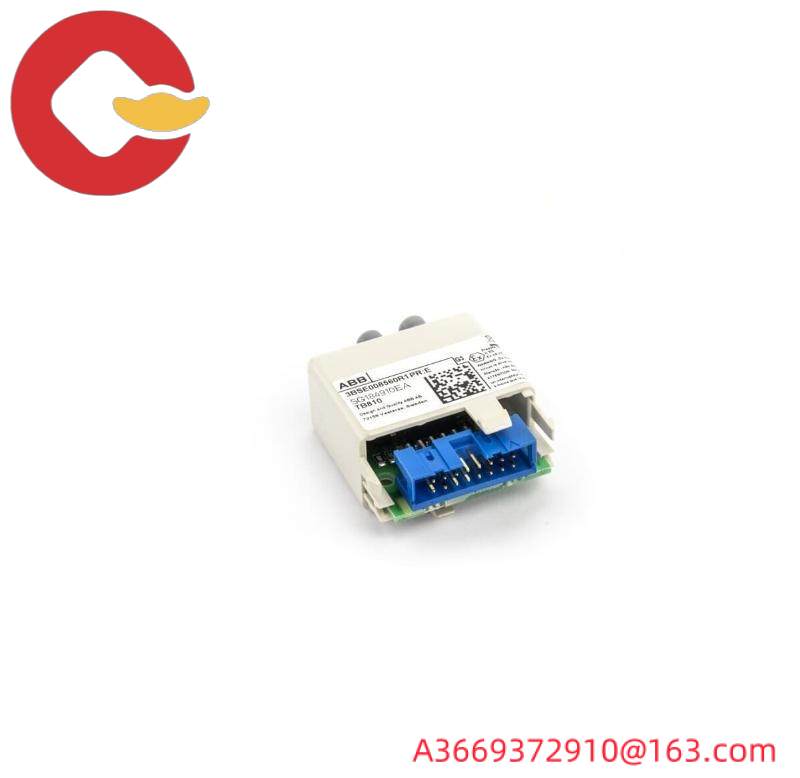

ABB TB810 – 3BSE008560R1: Industrial Grade Module Bus Optical Port, Designed for Advanced Control Systems

Operating Voltage:DC 24 V

Data Transfer Rate:1 Mbps

Optical Fiber Compatibility:Multi-mode

Max. Transmission Distance:2 km

Connector Type:M12 X Circular Connector

Environmental Rating:IP67

Temperature Range:-25°C to +60°C

Power Consumption:Less than 1.5 W

Protocol Support:MODBUS RTU

    The ABB TB810 3BSE008560R1 Modulebus Optical Port is engineered for industrial environments where high data integrity and long-distance communication are critical. It ensures reliable operation under extreme temperatures and harsh conditions, making it suitable for applications in manufacturing, automation, and process control industries.

    Featuring a modular design, the TB810 allows for easy installation and configuration, ensuring minimal downtime and efficient maintenance. The device supports various fiber types and wavelengths, offering flexibility in system setup and scalability for future upgrades.

    With its advanced error detection capabilities, including cyclic redundancy check (CRC), the TB810 ensures data accuracy and prevents potential failures, enhancing the overall performance and safety of the control systems it is integrated into.

    The IP67-rated enclosure provides protection against dust and water ingress, ensuring the TB810 remains operational even in challenging outdoor settings. This makes it ideal for installations in areas exposed to rain, dust, or extreme weather conditions.

    The TB810 supports both single-mode and multi-mode fibers, accommodating a wide range of industrial networks. Its compatibility with standard connector types like LC or SC ensures seamless integration with existing infrastructure and facilitates easy connection to various devices within the network.
