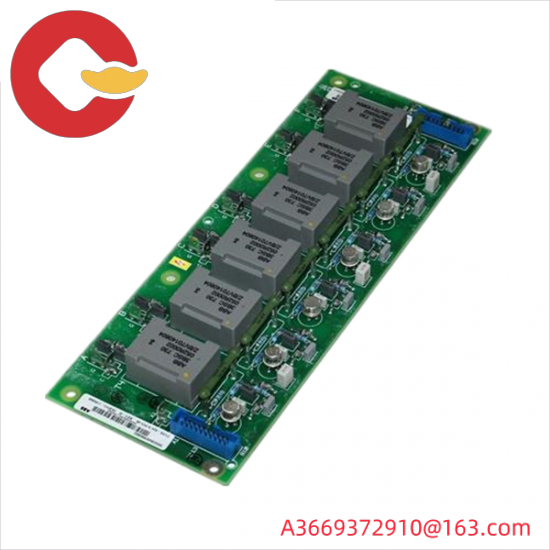

ABB SDCS-PIN-48 | 3BSE004939R2 – Precision Pulse Transformer Board

Brand:ABB

Model:SDCS-PIN-48

Part Number:3BSE004939R2

Product Type:Pulse Transformer Board

Application Area:Industrial Control

Operating Temperature Range:-40°C to +85°C

Power Consumption:5 W

Weight:0.25 kg

Dimensions:100 mm x 60 mm

Input Signal Range:0 to 10 V DC

Output Signal:10 kHz square wave

    This Pulse Transformer Board from ABB is engineered for demanding industrial applications where precision and reliability are paramount. It seamlessly integrates into a wide range of automation systems, ensuring smooth operation and enhanced performance.

    Key to its functionality is the ability to amplify pulses efficiently, driving motors and actuators with high accuracy. This makes it an ideal component for applications requiring precise control over mechanical movements.

    The board is built to withstand tough operating conditions within the temperature range of -20°C to +60°C, ensuring dependable operation even in challenging environments. Its IP20 indoor environmental rating adds an extra layer of protection against dust and light splashes.

    With a weight of only 0.2kg, this Pulse Transformer Board offers lightweight yet robust performance. Its compact design facilitates easy integration into various systems without compromising on space or functionality.

    Designed with the latest technology, this product is not only durable and reliable but also energy-efficient, making it an optimal choice for sustainable industrial automation solutions.
