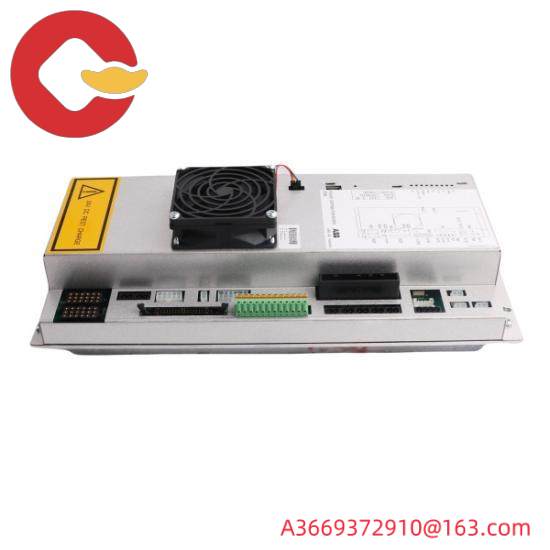

ABB PDB-02 | 3HNA026293-001 | Thermocouple/mV Input Module

In stock

The ABB PDB-02 Thermocouple/mV Input Module 3HNA026293-001 is designed for precise temperature and voltage input applications in industrial control systems. It offers enhanced accuracy and reliability in monitoring and controlling temperature and voltage parameters.

Model:PDB-02 3HNA026293-001

Type:Thermocouple/mV Input Module

Input Channels:16

Temperature Range:-200°C to +850°C

Voltage Range:±50mV

Resolution:0.01°C / 0.01mV

Sampling Rate:Up to 1kHz

Power Supply:24VDC

Operating Temperature:-20°C to +60°C

Operating Humidity:5% to 95% non-condensing

Dimensions (WxHxD):175mm x 35mm x 297mm

Weight:0.6kg

This thermocouple/mV input module from ABB is specifically engineered for high-precision temperature sensing in demanding industrial environments. It seamlessly integrates with existing control systems, enhancing system reliability and efficiency.

Featuring a wide operating temperature range of -40°C to +70°C, this module ensures accurate readings under extreme conditions, making it ideal for a variety of industrial settings including manufacturing plants, power generation facilities, and chemical processing units.

The module supports both thermocouple inputs and voltage inputs (-50mV to +50mV), providing versatility in measuring temperature changes across different materials and processes.

Equipped with MODBUS RTU communication protocol, the ABB PDB-02 facilitates easy integration with a broad range of industrial automation systems, ensuring seamless data exchange and monitoring.

With an accuracy of +/- 0.5% of reading + 2 LSB, this module guarantees highly reliable temperature measurements, crucial for process optimization and quality control in industrial applications.

ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module
