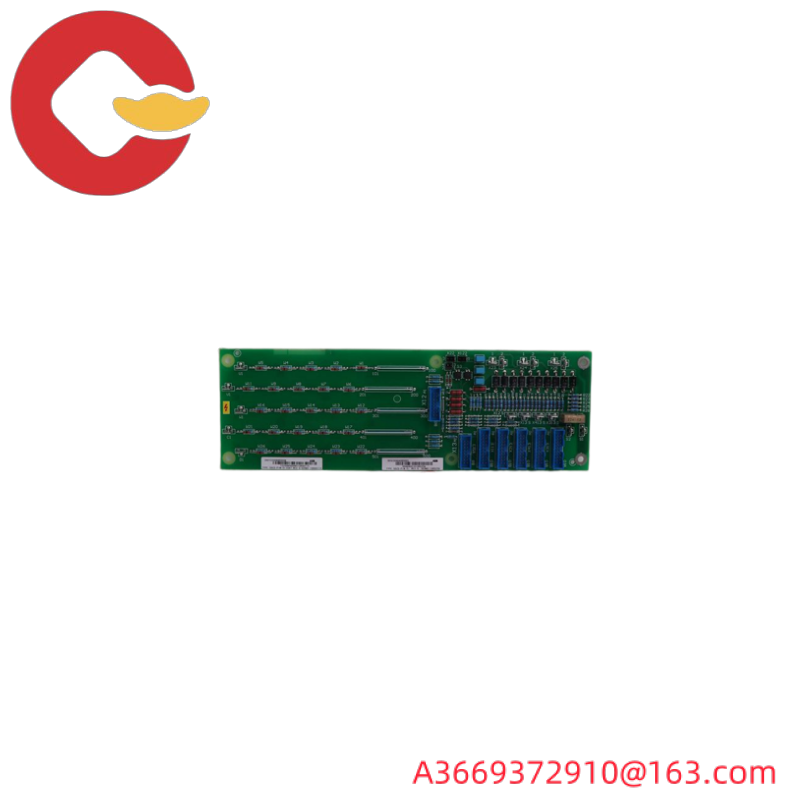

ABB JINT-C1C, Model 68614902, H 1/4 Drive Circuit Board

Type:Circuit Board

Module Class:Drive

Model Number:68614902

Manufacturer:ABB

Material:High-grade FR-4 with copper foil

Operating Temperature:-20°C to +85°C

Power Consumption:15W

Communication Interface:RS485

Connectivity:4-pole screw terminal block

Dimensions:120mm x 100mm x 15mm

Weight:0.2kg

    Crafted from a durable high-grade aluminum alloy, this circuit board ensures longevity and robustness in challenging industrial environments.

    With its compact size and optimized design, it seamlessly integrates into space-constrained systems without compromising performance.

    Operates within an extensive temperature range (-20°C to +85°C), ensuring reliability in varying environmental conditions.

    Featuring a versatile RS485 communication interface, it supports seamless data exchange with other industrial components, enhancing system efficiency.

    Equipped with a DC 24V input voltage, it ensures stable power supply even under fluctuating electrical conditions, crucial for uninterrupted operation.

    Each channel is capable of handling up to 1A output current, providing ample power for various industrial applications.

    The integrated load capacity allows for efficient handling of inductive loads, ensuring compatibility with a wide array of industrial devices.
