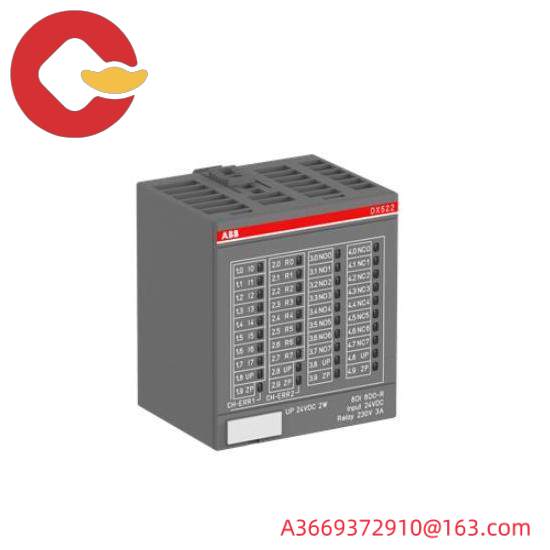

ABB DX522 – 1SAP245200R0001: 8-Channel Relay Output Module, Industrial Automation

Brand:ABB

Model:DX522 – 1SAP245200R0001

Series:Industrial Automation Modules

Channel Count:8

Relay Type:Relay Output

Operating Voltage:24 VDC

Relay Rating:5A @ 240VAC

Contact Configuration:SPDT

Communication Interface:Profinet

Dimensions (WxHxD):100mm x 90mm x 50mm

Weight:0.5kg

Environmental Rating:IP20

Operating Temperature:-20°C to +70°C

    The ABB DX522 – 1SAP245200R0001 is a high-performance 8-channel relay output module, specifically engineered for industrial automation systems. This compact and efficient module provides a robust solution for control and monitoring applications.

    Equipped with SPDT (Single Pole Double Throw) relay contacts rated at 5A at 240VAC, it ensures reliable switching capabilities for various loads. The module supports a wide range of operating voltages, including 24 VDC, making it suitable for diverse industrial environments.

    Integrated with Profinet communication interface, this module seamlessly connects to other devices within the network, enabling real-time data exchange and improved system efficiency. Its compact design (100mm x 90mm x 50mm) and lightweight (0.5kg) make it easy to integrate into existing control panels or systems.

    Designed with an environmental rating of IP20, the DX522 – 1SAP245200R0001 can withstand harsh industrial conditions, ensuring reliable operation under varying temperature ranges (-20°C to +70°C). This makes it ideal for use in a wide array of industrial applications, from manufacturing lines to HVAC systems.

    The ABB DX522 – 1SAP245200R0001 comes with comprehensive documentation and technical support, ensuring ease of installation and maintenance. Its compatibility with ABB’s extensive automation portfolio allows for seamless integration into larger automation systems, enhancing overall operational efficiency and reliability.
