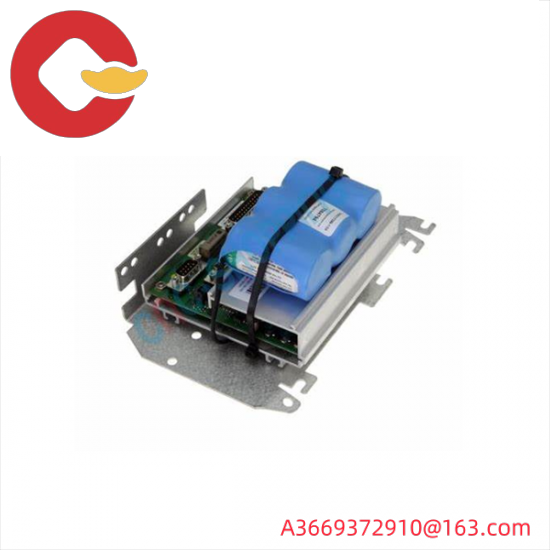

ABB DSQC562 3HAC17396-1 Serial Measurement Unit

Operating Voltage:24 VDC

Input Type:Digital and Analog

Sampling Rate:Up to 1 kHz

Communication Interface:RS-232, RS-485, CANopen

Power Consumption:Max. 500 mA

Environment:IP20, 5 to 55°C, 5 to 95% RH non-condensing

Dimensions:100 x 55 x 44 mm

Weight:100 g

    The ABB DSQC562 3HAC17396-1 serial measurement unit is an essential component for enhancing the efficiency and reliability of industrial control systems. It provides accurate measurements of various signals including temperature, pressure, and flow rates through its robust 16-channel analog input capability.

    Equipped with a versatile RS-232/RS-485 interface, this unit ensures seamless communication between different devices in your automation network. Its ability to withstand extreme temperatures (-20°C to +60°C) makes it suitable for use in a wide range of industrial environments.

    With a high-speed output frequency up to 1 kHz, the DSQC562 is capable of controlling actuators and other devices with precision and speed, enhancing operational efficiency. The discrete outputs can be tailored to control motors, switches, and indicators according to specific requirements.

    Designed with user-friendliness in mind, the DSQC562 offers easy setup and configuration options, making it accessible for both experienced engineers and those new to industrial automation. Its compact design ensures minimal space usage on control panels without compromising functionality.

    This serial measurement unit from ABB is CE certified, ensuring compliance with European safety standards. Backed by ABB’s reputation for quality and reliability, the DSQC562 3HAC17396-1 is an investment in your automation infrastructure, promising long-term performance and reduced maintenance costs.
