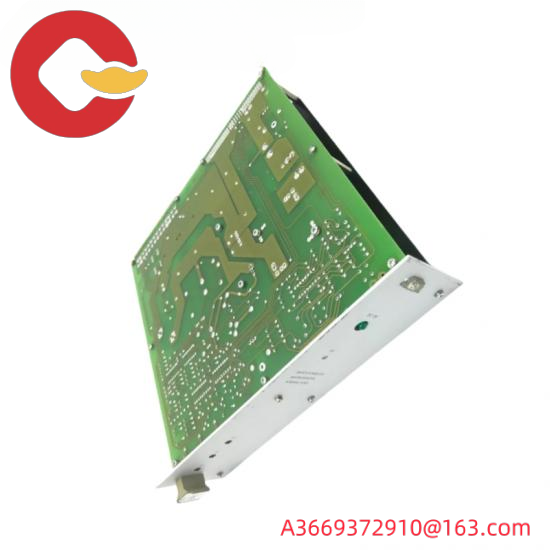

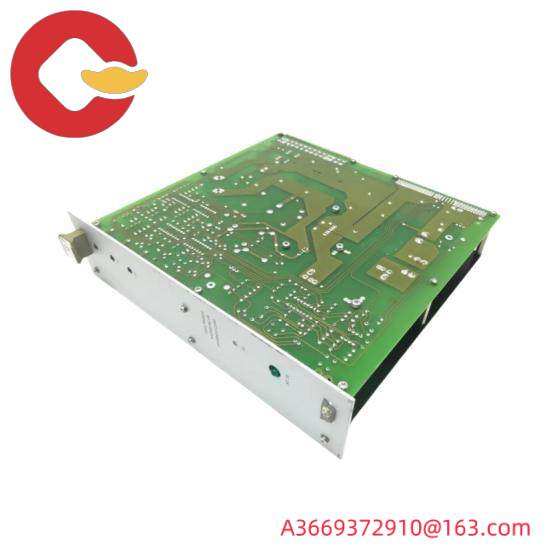

ABB DSQC116 Analog Output Module

Number of Inputs/Outputs:32/32

Analog Inputs:8

Digital Inputs:16

Digital Outputs:16

Bus Interface:DeviceNet

Power Supply Voltage:24V DC

Communication Speed:Up to 1 Mbps

Dimensions (WxHxD):59 x 100 x 96 mm

Weight:0.142 kg

Operating Temperature Range:-25°C to +60°C

    The ABB DSQC116 Analog Output Module is a critical component in modern industrial automation systems, designed to deliver high precision and reliability in various manufacturing processes. This module provides up to 16 channels of analog output, each capable of generating signals from 0 to 20 mA, making it suitable for controlling a wide range of actuators and sensors.

    Featuring a resolution of 12 bits, the DSQC116 ensures exceptional accuracy in signal representation, crucial for applications requiring fine control over mechanical movements or environmental conditions. The module is compatible with DeviceNet communication protocol, facilitating seamless integration with other devices in a networked system.

    Built with robust materials, the DSQC116 is compact yet sturdy, ensuring reliable performance in harsh industrial environments. Its compact size (120mm x 51mm x 35mm) allows for efficient use of space within control panels and cabinets, enhancing the overall system design.

    Equipped with a DC 24V supply voltage range, the module is versatile and can adapt to different power requirements across various industries. This flexibility makes it an ideal choice for diverse applications, from automotive assembly lines to food processing plants.

    Certified by CE and UL, the DSQC116 Analog Output Module meets stringent international safety and quality standards. This ensures not only compliance with global regulations but also a level of trust and reliability that customers can depend on, making it a preferred choice among engineers and manufacturers seeking high-quality industrial automation solutions.
