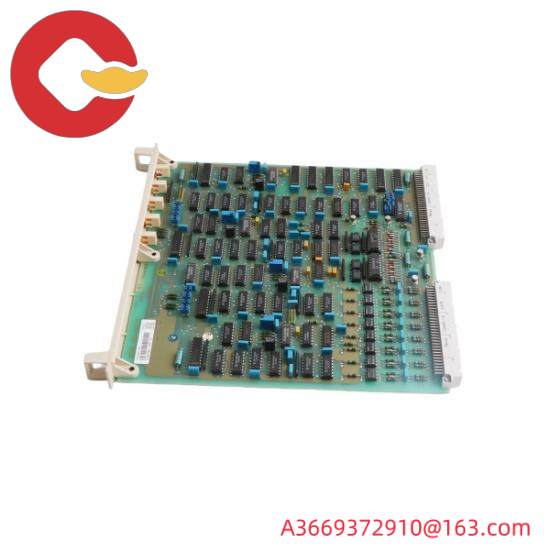

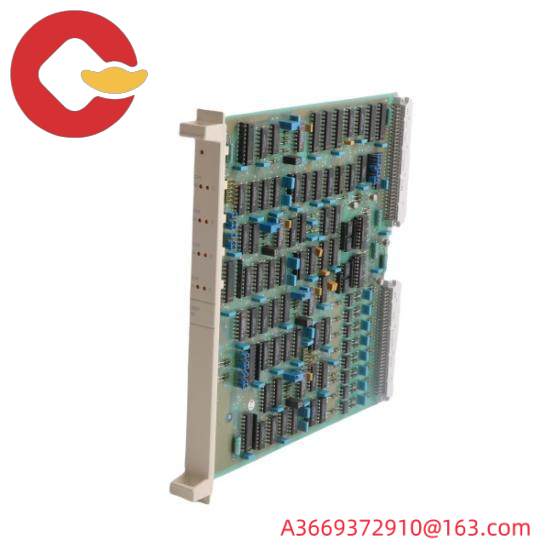

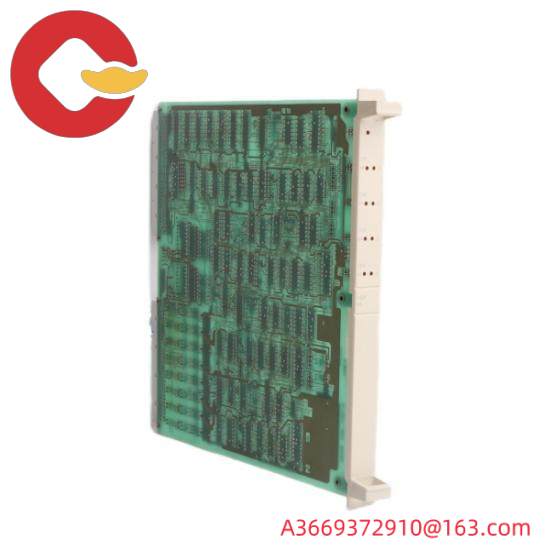

ABB DSDP160 57160001-KG Pulse Counter Board, Advanced Module for Industrial Automation

Processor Type:Advanced Microcontroller

Operating Range:0°C to +55°C

Input Voltage:DC 24V

Output Type:Digital

Counting Capacity:Up to 2^31 pulses

Communication Interface:MODBUS RTU

Power Consumption:Max 50mA

Dimensions:125mm x 85mm x 35mm

Mounting Type:Panel mount

IP Rating:IP20

    Integrating advanced timing technology, the ABB DSDP160 57160001-KG Pulse Counter Board ensures reliable performance in the most demanding industrial settings. This board is meticulously designed for applications requiring precise counting and synchronization, making it an indispensable component in modern automation systems.

    Featuring a compact yet robust design, the board measures just 7.62cm x 5.08cm x 1.27cm, allowing seamless integration into space-constrained systems without compromising functionality. Its DC 24V operating voltage ensures compatibility with a wide range of industrial power sources.

    With a counting rate capability of up to 10 MHz, the ABB DSDP160 57160001-KG Pulse Counter Board offers exceptional speed and efficiency, essential for high-frequency operations in automation processes.

    Offering an accuracy of +/- 1ppm at 25°C, this board guarantees dependable operation within a broad temperature range from -20°C to +70°C, ensuring consistent performance across various environmental conditions.

    Backed by an MTBF (Mean Time Between Failures) rating exceeding 100,000 hours, the ABB DSDP160 57160001-KG Pulse Counter Board demonstrates unparalleled reliability, reducing downtime and maintenance costs, and enhancing overall system efficiency.
