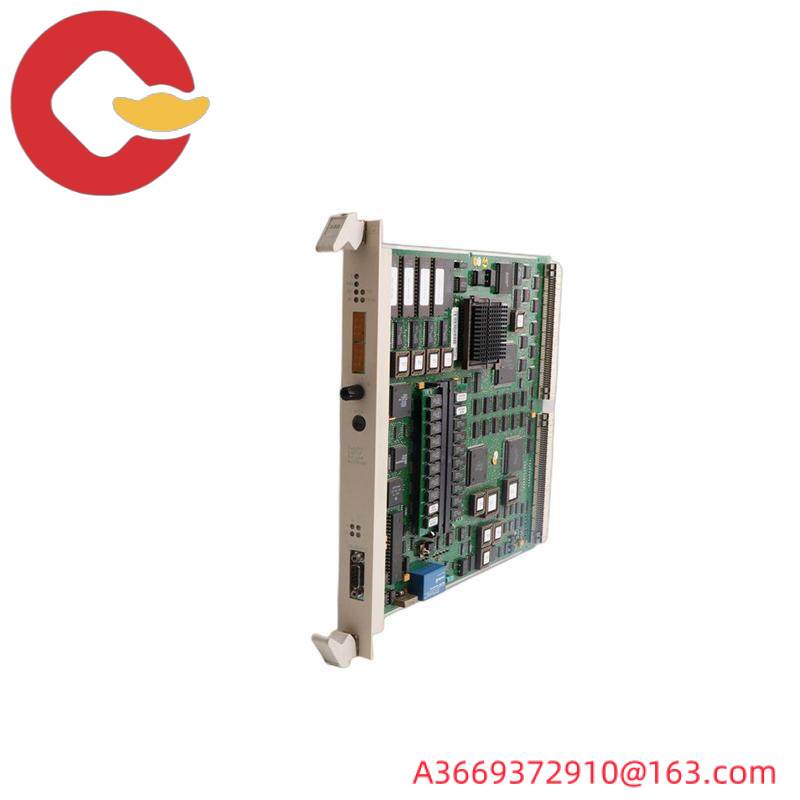

ABB DSDI130 Analog Input Board: Precision & Reliability in Industrial Automation

Operating Voltage Range:12V to 24V DC

Input Signal Range:-10V to +10V or 0V to 20mA

Number of Channels:16

Data Rate:Up to 1kHz

Operating Temperature:-20°C to +70°C

Dimensions:120mm x 100mm x 45mm

Connectors:M12 connectors for easy installation

    The ABB DSDI130 Analog Input Board is an essential component for any industrial control system seeking high precision in analog signal processing. With its advanced design, it ensures accurate data acquisition under various environmental conditions.

    Equipped with 16 channels capable of measuring voltages ranging from -10V to +10V, this board offers a wide dynamic range suitable for diverse industrial applications. Its high sampling rate of 1000 Hz allows for fast response times in dynamic processes.

    Featuring a low input impedance of 1 kΩ, the board minimizes signal distortion, ensuring reliable data transmission. It is powered by a stable DC 24V supply, ensuring continuous operation in industrial environments.

    Operational in temperatures ranging from -20°C to +70°C, the DSDI130 is built to withstand harsh industrial conditions. For storage, it can endure temperatures up to +85°C without damage, making it ideal for long-term use in challenging locations.

    Compact yet robust, the board measures 128 mm x 96 mm x 60 mm, fitting seamlessly into existing control panel layouts. Its lightweight design at 250 grams facilitates easy installation and maintenance.
