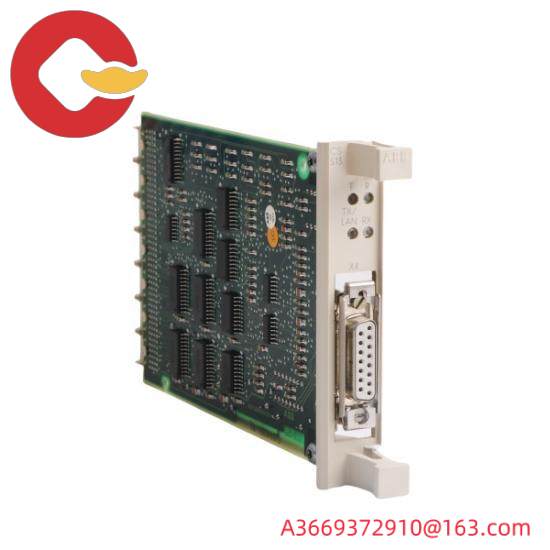

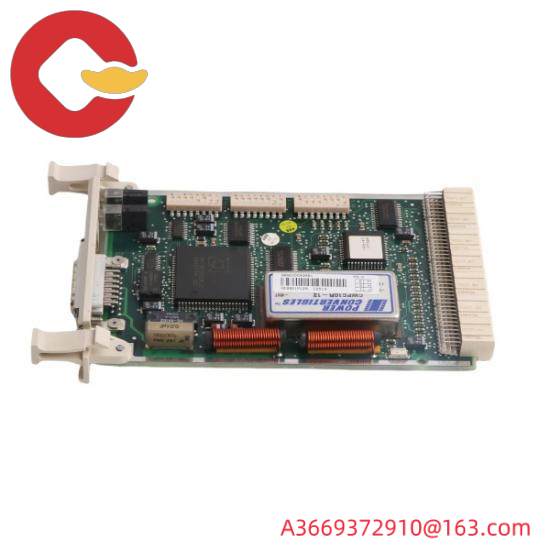

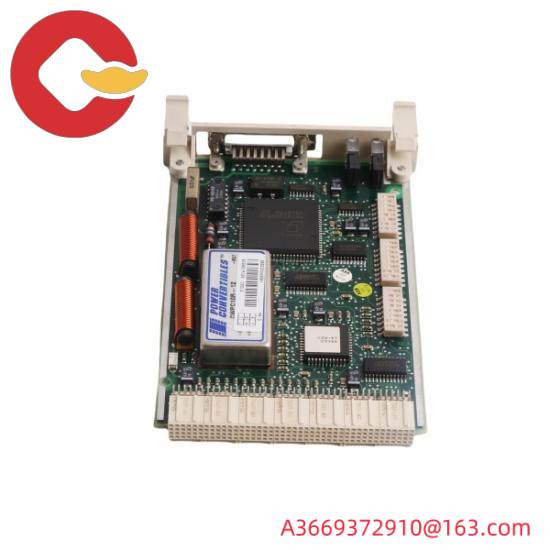

ABB CS513 3BSE000435R1 – High-Speed Ethernet LAN Module

Brand:ABB

Model Number:CS513 3BSE000435R1

Technology:Industrial Ethernet

Connection Type:LAN

Operating Temperature Range:-20°C to +70°C

Power Consumption:1W (max)

Data Transfer Rate:10/100 Mbps

Protocol Support:TCP/IP, UDP, MODBUS, EtherCAT

Dimensions (W x H x D):50mm x 50mm x 20mm

Material:Dielectric grade PBT with UL94 V-0 flame retardant

Connector Type:M12 connector

    The ABB CS513 3BSE000435R1 Ethernet LAN Module is engineered for industrial automation environments, ensuring reliable and efficient data exchange between devices. With its robust M12 connector, it is adaptable to various industrial settings, facilitating easy installation and maintenance.

    Supporting multiple protocols including TCP/IP, UDP, and Modbus/TCP, this module enables seamless communication across different control systems, enhancing system integration capabilities. Its high data rate of 10/100 Mbps ensures fast and stable data transfer, critical for real-time operations in manufacturing and process industries.

    Operated within an extensive temperature range from -25°C to +70°C, this module is designed to withstand harsh industrial conditions, guaranteeing reliable performance in diverse climates. The IP67 protection class ensures dust and water resistance, providing durability in challenging environments.

    Featuring a compact design measuring only 22 x 32 x 90 mm and weighing just 40 grams, the CS513 3BSE000435R1 module is lightweight and space-efficient, ideal for integration into complex control systems without compromising on functionality or performance.

    Equipped with a DC 9 to 36 V power supply, the module offers flexibility in power sourcing, making it suitable for a wide range of industrial applications. Its user-friendly design ensures ease of use and quick deployment, minimizing downtime and enhancing operational efficiency.
