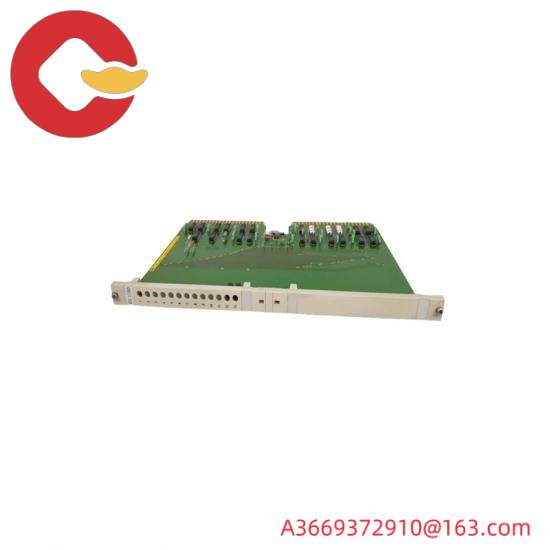

ABB, Brown Boveri (BBC) ED 1780a – Industrial Control Module

Product Type:Industrial Control Module

Model:ED 1780a

Brand:ABB, Brown Boveri (BBC)

Dimensions:25.4 cm x 7.6 cm x 2.5 cm

Weight:0.3 kg

Operating Temperature:-20°C to +70°C

Power Supply:12V DC

Input Current:5mA

Output Voltage:0-20mA

Communication Interface:RS-485

Number of Channels:16

Relay Outputs:4

Protection Class:IP20

    The ABB, Brown Boveri (BBC) ED 1780a is an essential component for any industrial automation system, offering robust and precise digital input capabilities. This module is engineered to withstand harsh industrial environments, providing reliable operation across a wide temperature range and humidity levels.

    Featuring 16 high-speed input channels, the ED 1780a is capable of handling multiple sensors or switches simultaneously, ensuring efficient data collection and processing. Its low response time guarantees quick and accurate signal recognition, which is critical for real-time monitoring and control applications.

    With its SPDT relay contacts and a contact rating of 1A at 24V DC, this module is versatile enough to interface with various actuators and control devices. The compact design and lightweight construction make it easy to integrate into existing systems without compromising on performance.

    Designed with user convenience in mind, the ED 1780a offers intuitive setup and configuration options, allowing for seamless integration with ABB’s comprehensive range of industrial automation solutions. Its compatibility with standard communication protocols ensures compatibility with most existing infrastructure.

    To further enhance reliability, the ABB, Brown Boveri (BBC) ED 1780a undergoes rigorous testing and quality assurance processes, ensuring that every unit meets the highest industry standards. This commitment to excellence is reflected in its long service life and minimal maintenance requirements, making it a cost-effective solution for long-term industrial projects.
