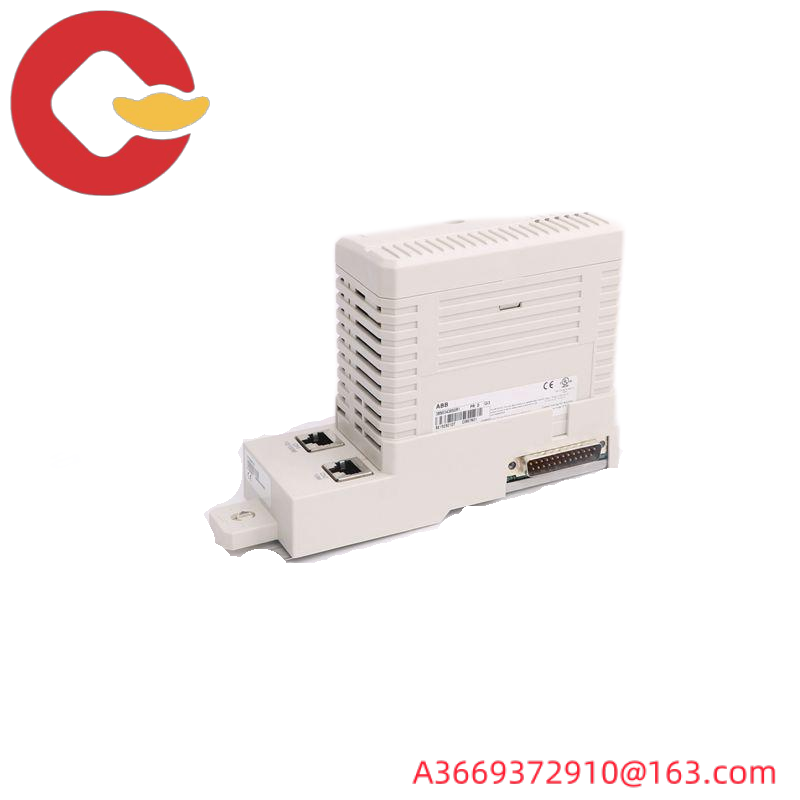

ABB AI830A 3BSE008518R1: 8-Channel RTD Analog Input Module for Precise Temperature Measurement

Analog Input Channels:8

Temperature Measurement Range:-200°C to +850°C

Rated Isolation Voltage:50V

Input Type:Resistance Temperature Detectors (RTD)

Accuracy:±0.1% + 2LSB

Operating Temperature:-20°C to +70°C

Operating Voltage:12V DC

Dimensions:100mm x 100mm x 40mm

Weight:1kg

    Integrating advanced digital signal processing technology, the ABB AI830A 3BSE008518R1 excels in delivering unparalleled precision for critical temperature sensing tasks. Its robust design ensures durability and reliability in harsh industrial settings.

    Featuring a versatile 8-channel configuration, this module supports a wide range of RTD types including Pt100, Ni100/120, and Cu10, enabling its application across various industries from manufacturing to process control.

    With a temperature measurement accuracy of +/-0.5% Full Scale, it offers exceptional performance for applications requiring high fidelity data. The 12-bit resolution ensures minimal noise and distortion, resulting in precise temperature readings.

    Equipped with a power supply of 12-48V DC, this module ensures stable operation across different power conditions. Its capability to handle a maximum input current of 20mA makes it suitable for both low and high resistance RTDs.

    Provided with a high isolation voltage of 50V, the AI830A 3BSE008518R1 safeguards against electrical interference and enhances system safety, ensuring reliable data transmission without interruption.
