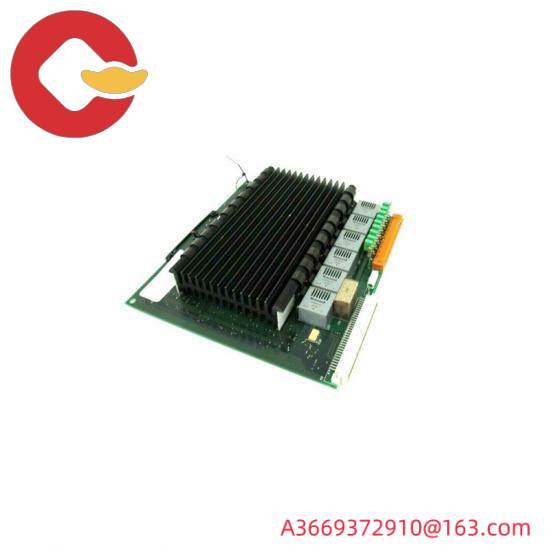

ABB 3HAB2207-1/3 – High-Performance Servo Drive Board

Operating Voltage:24V DC

Input Frequency Range:50-60 Hz

Power Output:1000 W

Control Protocol:EtherCAT

Max Load Capacity:20 Nm

Communication Interface:RS485

Environmental Rating:IP20

    Integrating advanced semiconductor technology, the ABB 3HAB2207-1/3 servo drive board is engineered for demanding industrial applications. Its robust design ensures precise control over motor speed, position, and torque, making it ideal for precision machinery in industries such as automotive, electronics, and aerospace.

    Featuring a compact form factor, this drive board optimizes space utilization on the machine panel without compromising on performance. It supports easy integration with existing control systems through its RS-485 interface, ensuring seamless communication with PLCs and other automation components.

    With a wide current range from 0.4A to 12.5A, the ABB 3HAB2207-1/3 can handle a variety of motor sizes, providing flexibility for different automation needs. Its high-speed control resolution of 0.1Hz ensures smooth and accurate operation, enhancing the overall efficiency and productivity of the production line.

    For safety and reliability, the drive board incorporates a built-in short-circuit protection mechanism, safeguarding against unexpected electrical disruptions. Additionally, its IP20 protection class ensures durability in industrial environments, protecting against dust and minor splashes of water.

    Designed with user-friendliness in mind, the ABB 3HAB2207-1/3 servo drive board offers intuitive setup and maintenance procedures, reducing downtime and facilitating quick installation and troubleshooting. It’s an essential component for manufacturers seeking to upgrade their automation systems with cutting-edge technology and improved operational capabilities.
