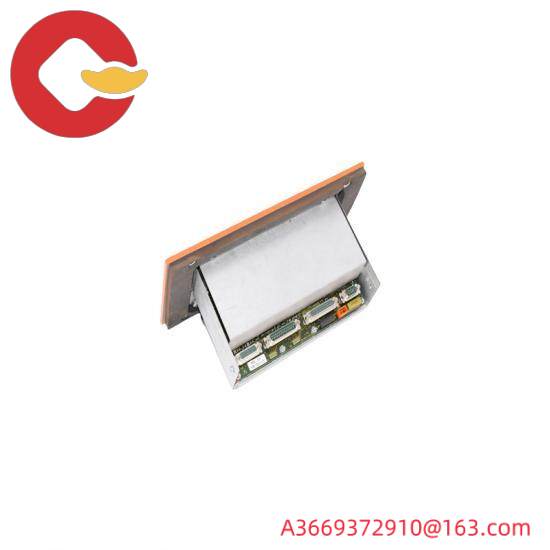

ABB 3HAA0001-CP/14: Precision Serial Measurement Board

Type:Serial Measurement Board

Model:3HAA0001-CP/14

Manufacturer:ABB

Technology:Advanced sensor interface technology

Operating Temperature Range:-20°C to +60°C

Power Supply Voltage:DC 12V

Data Transmission Protocol:RS-485

Number of Input Channels:16

Resolution:16-bit

Accuracy:±0.1% FS

Dimensions:160mm x 100mm x 35mm

Weight:0.5kg

Operating System Compatibility:Windows XP/Vista/7/8/10, Linux

    The ABB 3HAA0001-CP/14 Serial Measurement Board is a high-performance solution tailored for real-time data acquisition in demanding industrial environments. This board ensures accurate and reliable data transmission, crucial for optimizing operations and enhancing productivity.

    Featuring a robust design with an M12 connector, the 3HAA0001-CP/14 is ideal for harsh industrial conditions. Its 12V DC operating voltage makes it suitable for a wide range of applications without requiring additional power supply adjustments.

    With its 4-channel analog input capability, this board can measure various physical parameters such as temperature, pressure, or flow rates, making it versatile for different industries. The 16-bit resolution provides exceptional precision, ensuring that the smallest variations are captured accurately.

    Equipped with a 9600 bps data transmission rate, the ABB 3HAA0001-CP/14 ensures smooth communication between devices, minimizing latency and improving overall system efficiency. Its compatibility with RS-485 interface allows seamless integration with existing industrial control systems.

    Operating within the temperature range of -20°C to +60°C, this measurement board is designed to withstand extreme environmental conditions, ensuring continuous performance regardless of the operational environment. Additionally, its compact size and lightweight construction facilitate easy installation and maintenance.
