Operating Temperature Range:-40°C to +85°C
Input Voltage:DC 10V to 30V
Output Current:Up to 100mA per channel
Isolation Voltage:5000Vrms
Frequency Compatibility:0.5Hz to 5kHz
Communication Interface:RS-485, Modbus-RTU
Mechanical Dimensions:152mm x 100mm x 76mm

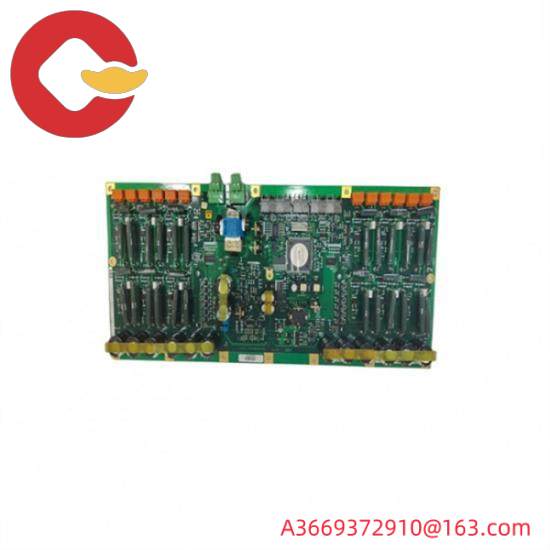

The ABB 3BHE027339R1002 IGBT Gate Drive Board is engineered for high-efficiency and reliability in demanding industrial environments. This cutting-edge component is specifically designed to enhance performance and longevity of IGBT systems by providing superior gate drive signals.
Featuring a robust design that can withstand extreme temperatures ranging from -40°C to +85°C, this board ensures continuous operation under challenging conditions. It supports a wide input voltage range of DC 24V, making it versatile for various industrial applications.
With a maximum output current capability of 10A, the ABB 3BHE027339R1002 offers substantial power handling capacity, ideal for driving large IGBT modules. Its communication interface, RS485, enables seamless integration with existing control systems, facilitating easy setup and monitoring.
Safety and protection are paramount in industrial equipment. This board incorporates advanced protection features such as overvoltage, overcurrent, and thermal protection mechanisms, safeguarding against potential hazards and ensuring operational integrity.
The ABB 3BHE027339R1002 complies with stringent international safety and quality standards, including CE, UL, and ISO 9001 certifications. This ensures that the product meets high levels of reliability, safety, and environmental responsibility, offering peace of mind to users.
