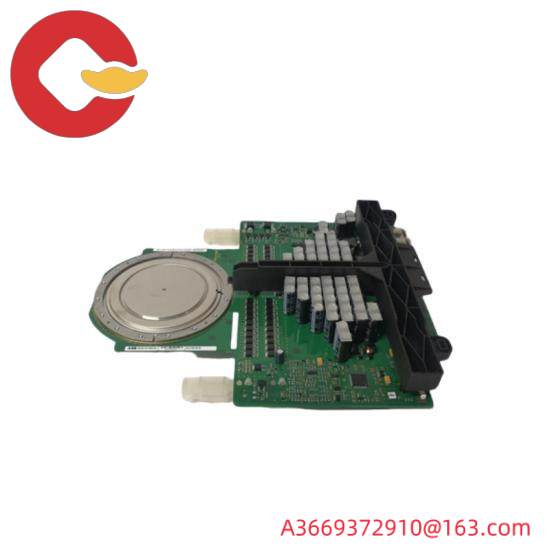

ABB 3BHB020720R0002 | IGCT Module

Brand:ABB

Model:3BHB020720R0002 – 5SHY3545L0016

Type:IGCT Module

Operating Temperature Range:-40°C to +70°C

Input Current Rating:Up to 1200A

Maximum Switching Frequency:Up to 20 kHz

Switching Technology:Gate Turn-Off Thyristor (GTO)

Package Size:16-pin TO-220 package

Insulation Resistance:≥10^10 Ω

Electrical Insulation Voltage:500V AC

Mechanical Life:≥10^6 switching cycles

Electrical Life:≥10^6 switching cycles

Environmental Compatibility:Compliant with RoHS and REACH regulations

    The ABB 3BHB020720R0002 IGCT module is engineered to deliver unparalleled performance in demanding industrial environments, particularly in high-voltage drive systems where reliability and efficiency are paramount.

    Featuring an innovative design, this module ensures optimal power transfer and minimizes energy losses, contributing significantly to the overall system efficiency.

    With its robust construction and wide operating temperature range, the IGCT module is suitable for a variety of industrial settings, from manufacturing plants to power generation facilities.

    Equipped with advanced cooling technology, it maintains stable operation even under heavy loads or extreme conditions, ensuring continuous and uninterrupted service.

    Installation and maintenance are simplified through user-friendly interfaces and modular design, making it accessible for both professional technicians and maintenance staff.
