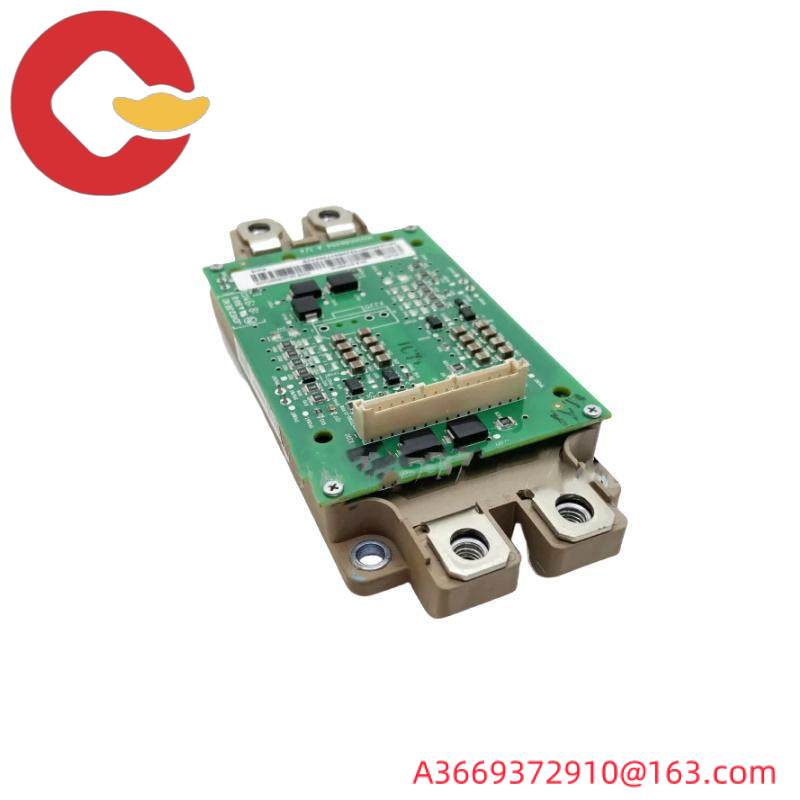

ABB 2MBI450VX-120-50/ZGAD-582, IGBT Modules

Rated Voltage (V):450

Rated Current (A):120

Thermal Design:ZGAD-582 Heat Sink

Operating Temperature Range:-40°C to +175°C

Insulation Resistance:≥10MΩ

Conduction Loss at 100% Duty Cycle:< 0.4W

Switching Frequency:Up to 50 kHz

    The ABB 2MBI450VX-120-50/ZGAD-582 IGBT Modules are engineered to deliver exceptional performance in high-power switching applications, from renewable energy systems to industrial motors.

    These modules are characterized by their robust design, capable of withstanding extreme temperatures and ensuring stable operation in harsh industrial conditions.

    Featuring advanced semiconductor technology, they offer unparalleled efficiency and reliability, making them suitable for applications requiring high power density and long lifespan.

    The inclusion of a thermal pad ensures efficient heat dissipation, even under heavy loads, prolonging the life of the modules and enhancing system reliability.

    The TO-247-3 package provides a compact solution with excellent heat dissipation properties, facilitating easy integration into various industrial control systems.

    Designed for seamless integration with ABB’s comprehensive line of industrial automation products, these IGBT Modules offer enhanced compatibility and system optimization, ensuring optimal performance across a wide range of applications.
