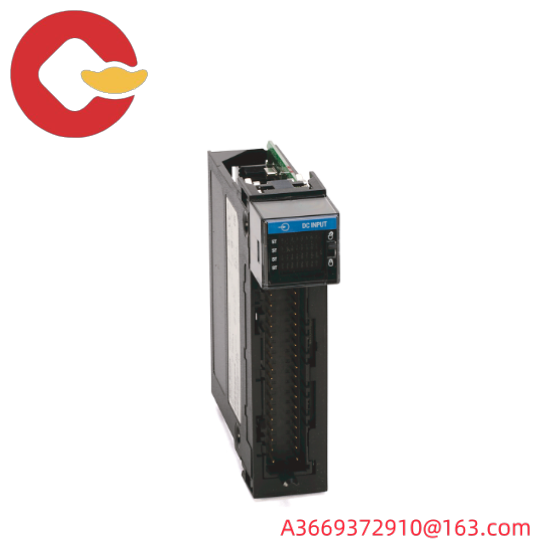

AB 1756-IV32 ControlLogix Input Module

Model Number:1756-IV32

Manufacturer:Allen-Bradley

Module Type:Analog Input

Number of Channels:32

Input Range:4 to 20 mA or 0 to 10 V

Power Consumption:Max 12 W

Communication Protocol:ControlLogix

Operating Temperature:-40°C to 70°C

Enclosure Type:IP20

Mounting Type:Panel

Isolation:300 V AC continuous

Data Formats:ASCII, Binary, BCD

Communication Speed:Up to 10 Mbps

    Engineered with precision for industrial automation applications, the Allen-Bradley 1756-IV32 ControlLogix Analog Input Module ensures reliable signal conversion from a wide range of industrial sensors. With its 32-channel design, this module supports versatile integration within complex control systems.

    Offering an exceptionally wide input range of -10V to +10V, the 1756-IV32 guarantees accurate data acquisition for diverse industrial processes. Its ±0.01% accuracy ensures high reliability in demanding environments.

    Integrated with the ControlNet communication protocol, the module facilitates seamless data exchange between the input module and other ControlLogix devices, enhancing system efficiency and performance.

    Crafted for durability and longevity, the module is designed to withstand harsh industrial conditions. Its IP20 enclosure provides protection against dust and light splashes, ensuring robust operation even in challenging environments.

    The Allen-Bradley 1756-IV32 is equipped with an efficient power consumption of 1.5 Watts, making it an eco-friendly choice for modern industrial settings. It is suitable for mounting directly on panels, offering flexibility in installation options.

    This input module supports various industrial applications, from temperature monitoring to flow rate measurement, ensuring compatibility with a wide array of sensors. Its compact size and lightweight design facilitate easy integration into existing systems without compromising functionality.
