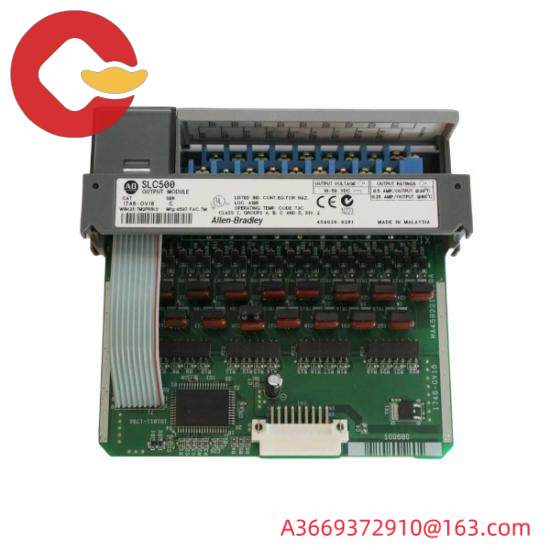

AB 1746-OV16 SLC 500 Digital Discrete Output Module

In stock

The AB 1746-OV16 is a discrete output module designed for Allen Bradley’s SLC 500 family of programmable logic controllers. This module offers reliable and efficient digital output control, making it ideal for industrial automation applications requiring precise control over on/off signals.

Module Type:Discrete output module

Product ID:1746-OV16

Nominal Input Voltage:24VDC

Input Voltage Range:10-50 VDC

Backplane Current Consumption:0.270 A

Voltage Range:10-50 Volts DC

Outputs:16 sink outputs

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Current Rating – Backplane:0.28 A

Continuous Current Per Output:0.25 A at 60°C

Continuous Current Per Module:4 A at 60°C

Isolation – Communication Circuits:500 VDC

Isolation – Backplane:1500 VAC

Processor:SLC 500

Temperature Rating:0 – 60 °C

Environmental Conditions:5 – 95%

Mounting:Chassis

The Allen Bradley 1746-OV16 Discrete Output Module is designed for high-performance applications in industrial environments. With sixteen channels of discrete output, this module offers unparalleled reliability and precision. Its robust design ensures long-term durability even in harsh conditions. Each channel supports a wide input voltage range from 10 to 50 volts DC, ensuring compatibility with a variety of devices. The module’s backplane current consumption is optimized for efficiency, drawing just 0.270 amps, while each channel can handle up to 0.25 amps continuously at 60°C. For added safety, the module includes robust isolation features, including communication circuits isolated up to 500 VDC, backplane isolation up to 1500 VAC, and processor compatibility with SLC 500 systems. Operating within a temperature range of 0 to 60°C and humidity levels from 5% to 95%, this module is well-suited for a broad range of industrial settings.
